Zebra SP7201-SV | Vertical Single-Plane POS Barcode Scanner | USB Kit | IP52 | Midnight Black

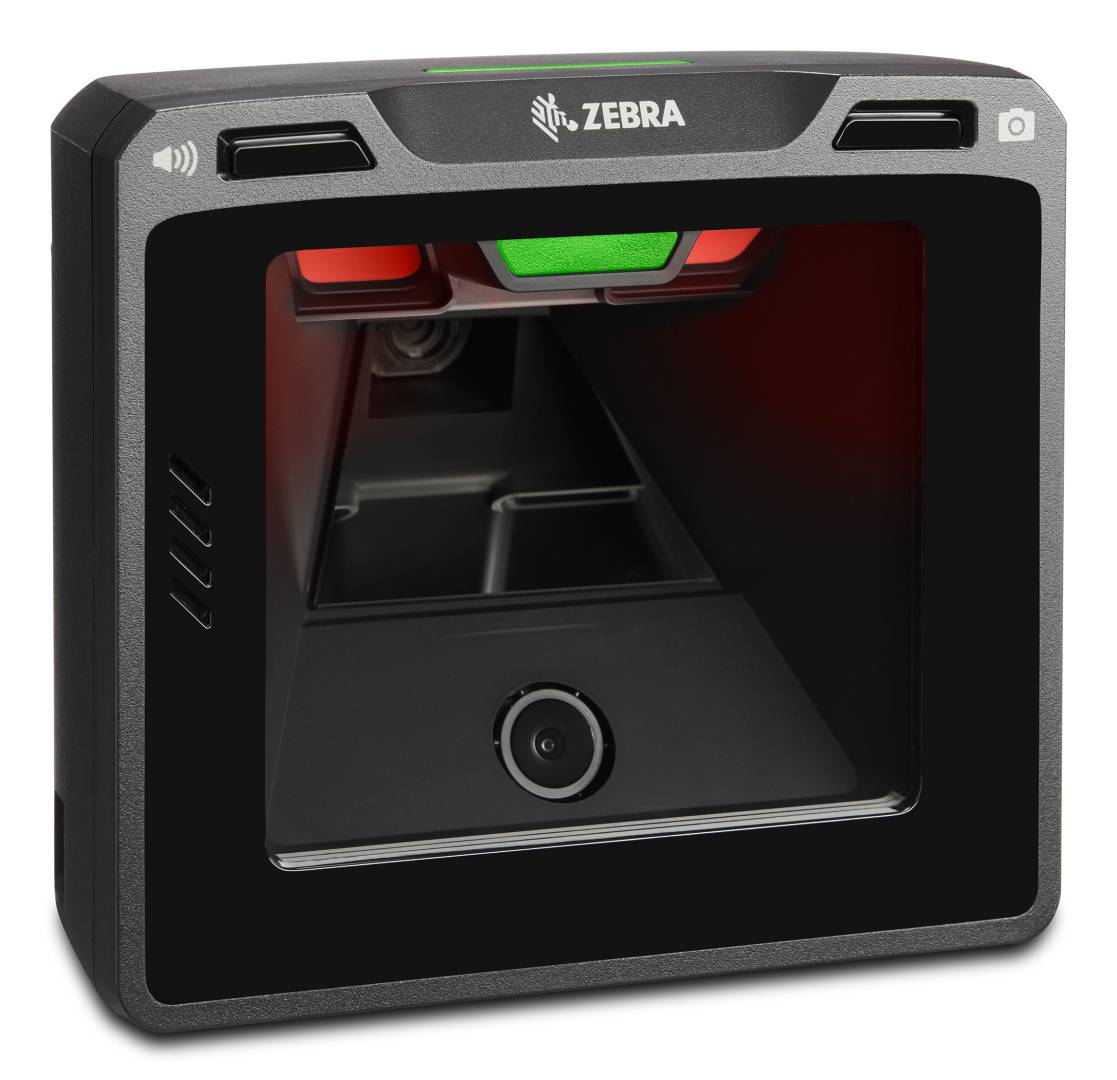

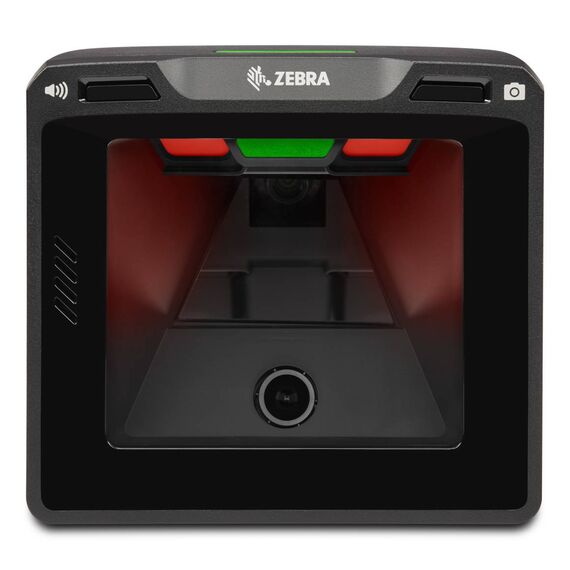

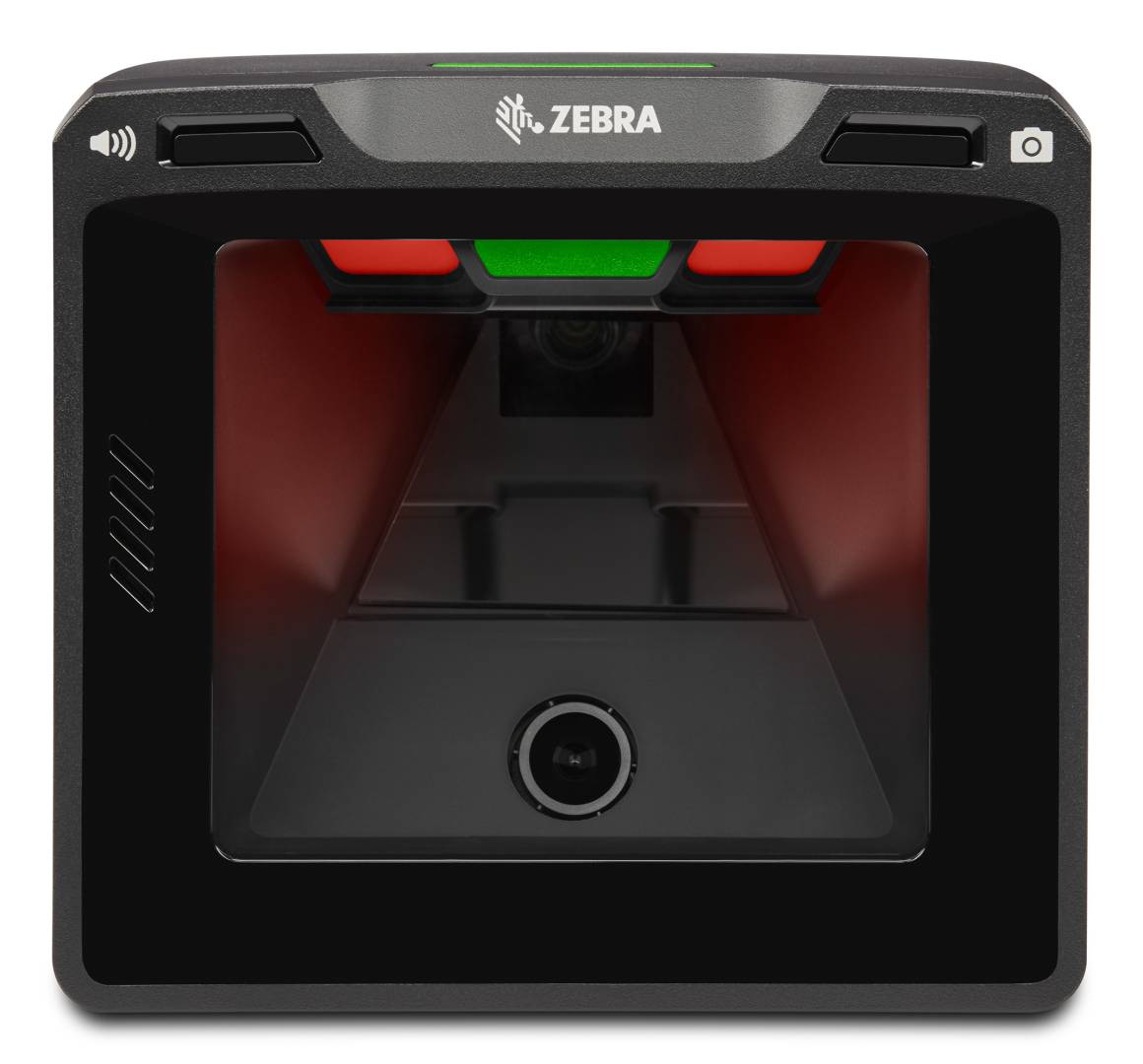

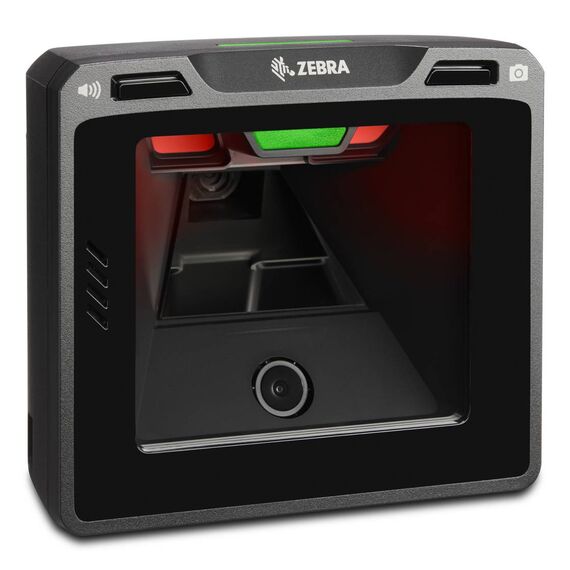

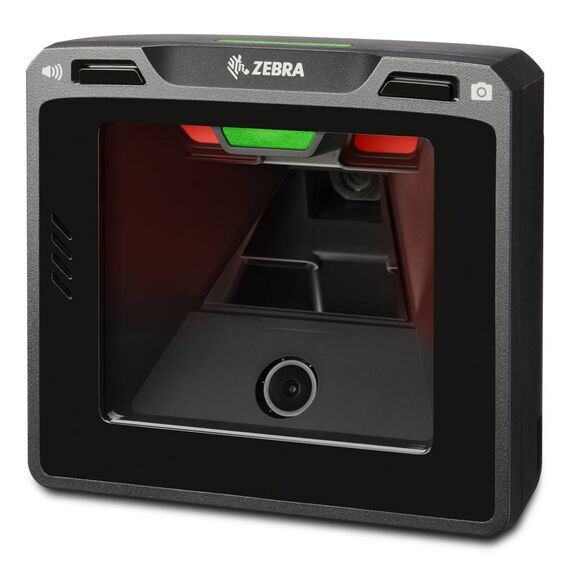

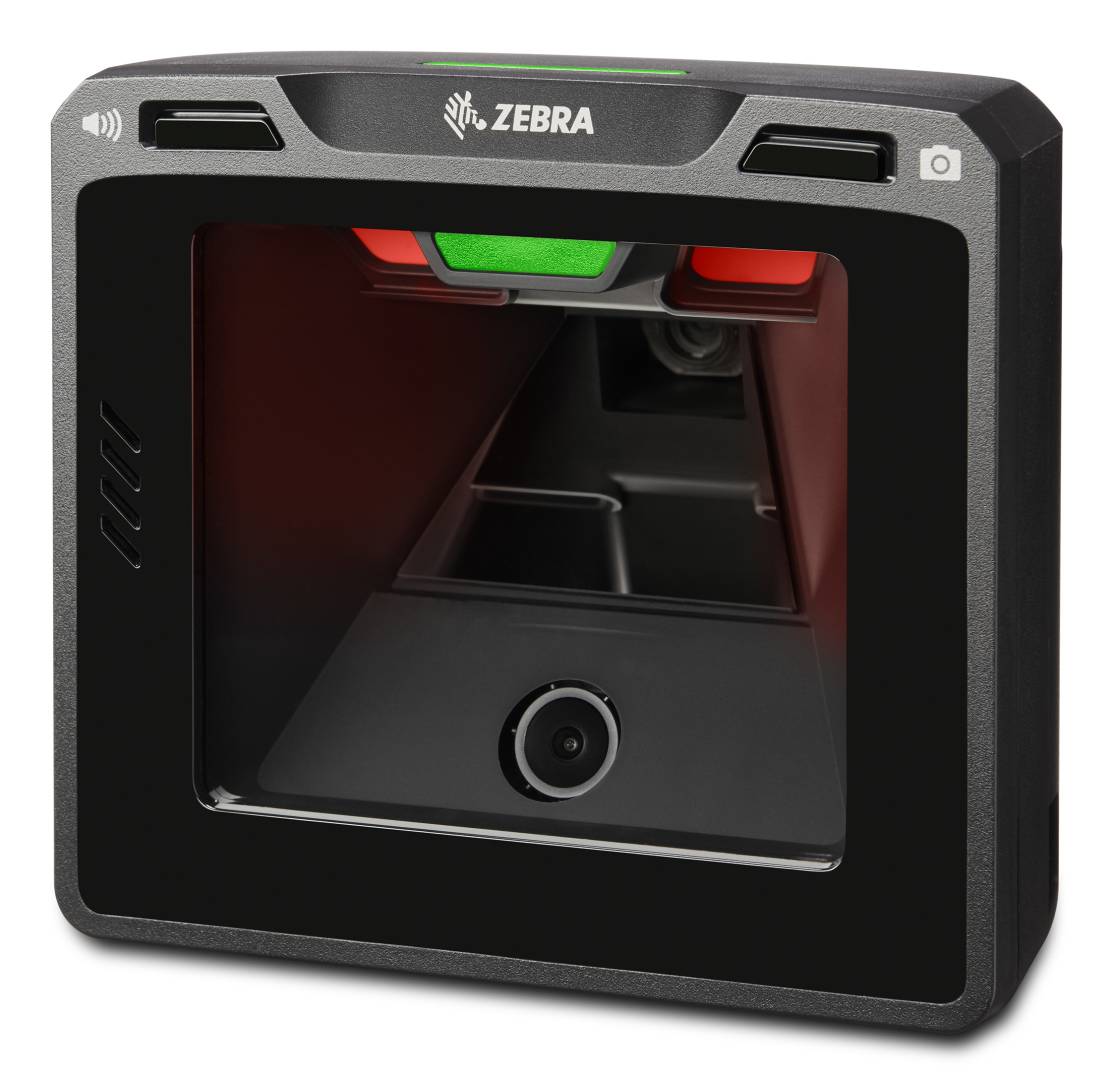

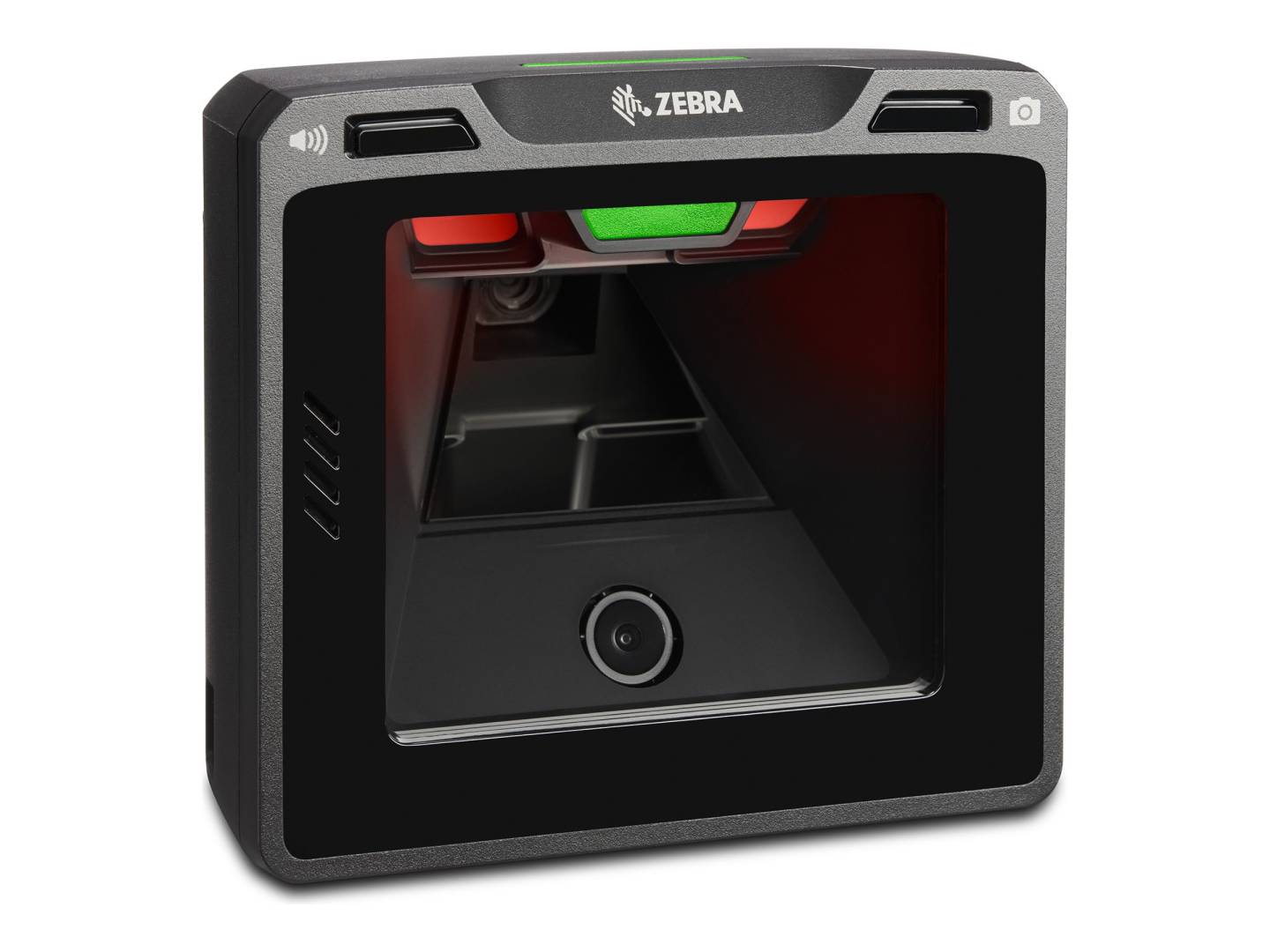

Zebra SP7201-SV
Vertical Single-Plane POS Barcode Scanner — USB Kit | Midnight Black — SP7201-SV4U2100AZW
The Zebra SP7201-SV is a high-performance vertical single-plane POS barcode scanner designed for grocery, pharmacy, convenience and specialty retail. Its compact flat-face design fits seamlessly on any counter surface, wall mount, or self-checkout enclosure — delivering the scanning speed and accuracy of a multi-plane scanner without the size or cost. This USB kit (SP7201-SV4U2100AZW) includes the SP7201-SV scanner and a 7-foot shielded USB cable.
Key Specifications
| Scanner Type | Single-plane vertical (SP72-V), on-counter / wall-mount / kiosk |
| Barcode Types | 1D and 2D (UPC, EAN, Code 128, GS1 DataBar, PDF417, QR Code and more) — PRZM Intelligent Imaging |
| Scan Distance | Up to 9.02 in (22.9 cm) — standard range |
| Connectivity | USB (corded) — no AUX port on this model |
| Sealing | IP52 — protected against dust ingress and low-pressure water sprays |
| Reading Window | Wide-area flat-face window for omni-directional swipe-and-go scanning |
| Installation | Counter-top, wall-mount, or self-checkout enclosure (flat-face design) |
| Management | Zebra DataCapture DNA — 123Scan, Scanner Management Service (SMS), remote firmware updates |
| Color | Midnight Black |
| Kit Contents | SP7201-SV00004ZZWW scanner + 7 ft shielded USB cable (CBA-U21-S07ZBR) |
| Applications | Grocery, pharmacy, convenience stores, specialty retail, self-checkout kiosks |
| Compliance | TAA compliant |
| Part Number | SP7201-SV4U2100AZW |
SP7201 vs SP7208 — Which Model Do You Need?
| Feature | SP7201 (this model) | SP7208 |
| High-performance 1D/2D scanning | ✓ | ✓ |
| Swipe-and-go scanning | ✓ | ✓ |
| Counter / wall / kiosk install | ✓ | ✓ |
| Optional 2.3 MP color camera | ✗ | ✓ (loss prevention / vision apps) |
| Missed-scan detection | ✗ | ✓ |
Ideal For
The SP7201-SV is designed for grocery, pharmacy, convenience stores, and specialty retail where checkout speed and reliability are critical. Its flat-face vertical design is particularly suited for self-checkout kiosks and counter installations with limited space.
Frequently Asked Questions
The SP7201-SV is a vertical scanner placed on top of or mounted next to the counter. The SP7201-SH is a horizontal in-counter scanner. Same scanning engine; different installation orientation.
Yes. The SP72 Series uses PRZM Intelligent Imaging and supports both 1D and 2D symbologies including QR codes, PDF417, and Data Matrix — enabling mobile loyalty apps, digital coupons, and age verification.
Yes. The flat-face design fits standard self-checkout enclosures and supports swipe-and-go scanning with a wide reading area. For missed-scan detection, consider the SP7208-SV.
Via Zebra's DataCapture DNA — 123Scan for quick configuration and Scanner Management Service (SMS) for remote fleet management and firmware updates.
Buyer's Guide
The SP7201-SV hits the sweet spot between cost, performance and footprint for retail POS. It offers multi-plane-class scanning speed in a compact vertical body — without the installation complexity or price of a true multi-plane scanner. The flat-face window handles swipe-and-go confidently, and IP52 provides basic counter-environment protection.
Choose the SP7201-SV if: you need a counter-top or wall-mounted vertical scanner for staffed or self-checkout lanes. For in-counter embedding, use the SP7201-SH. For missed-scan detection or color camera for loss prevention, step up to the SP7208-SV.
