Zebra DS2208 Barcode Scanner | 1D/2D Imager | USB | Kit | Black

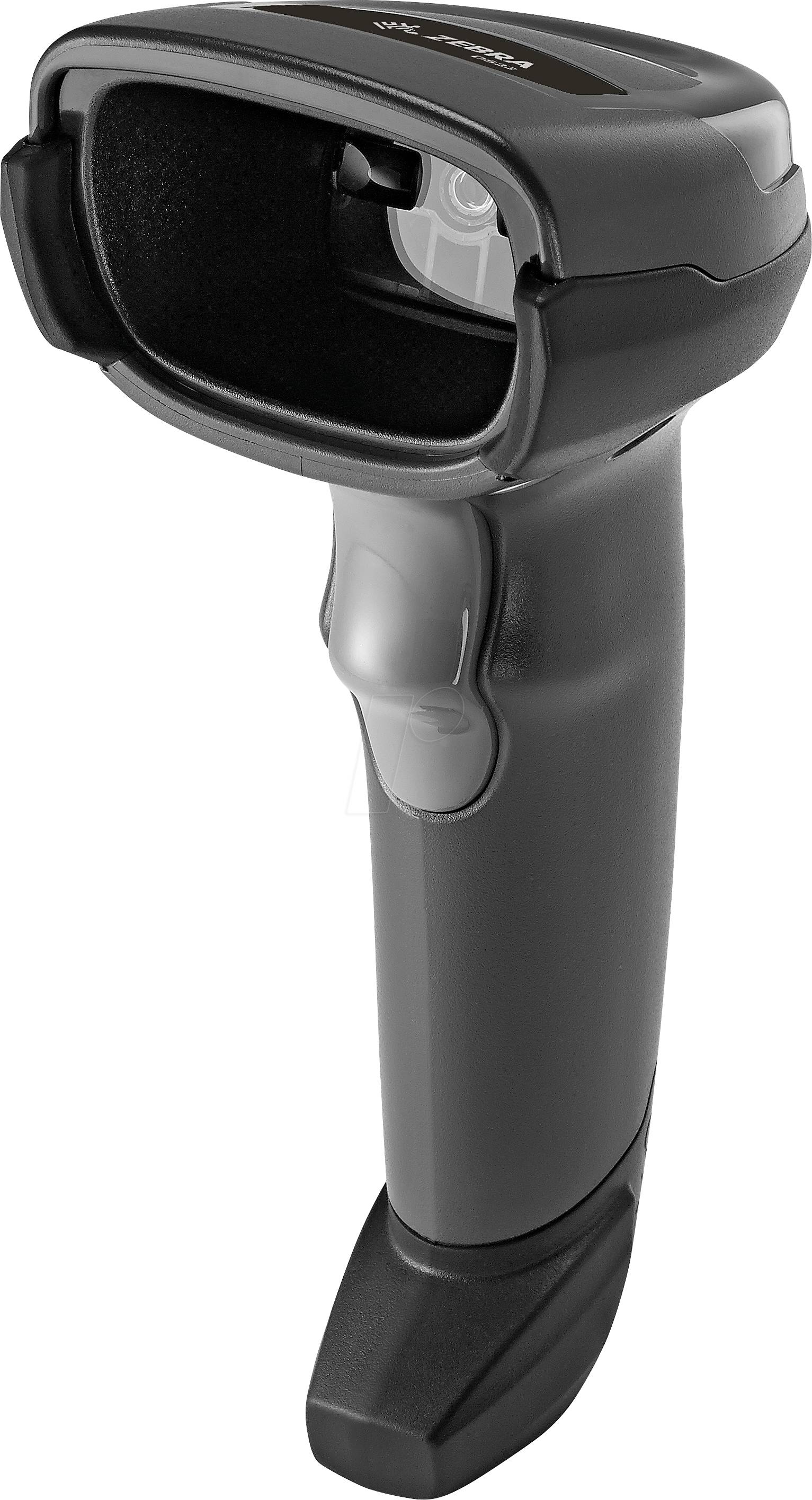

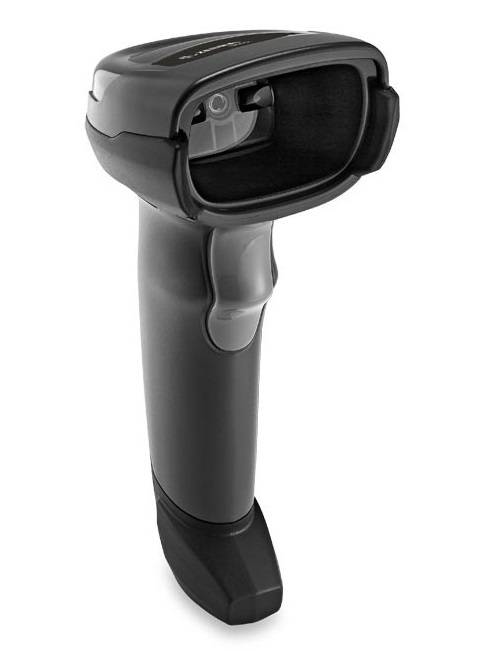

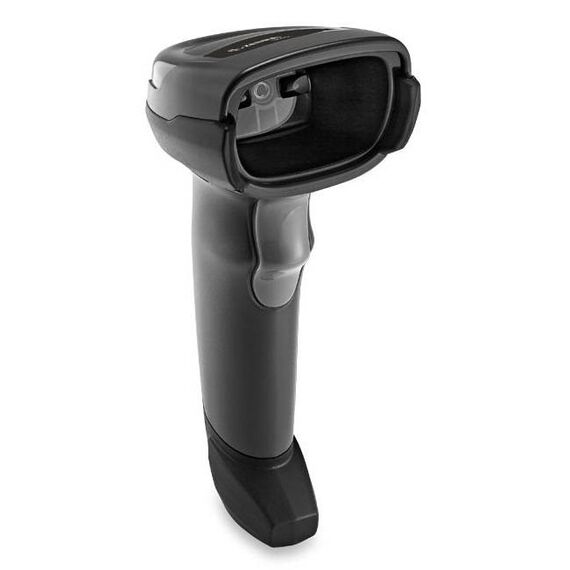

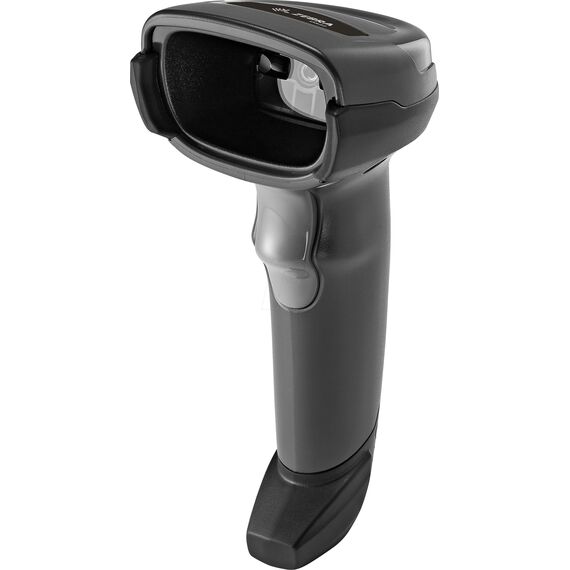

Zebra DS2208 Barcode Scanner
1D/2D Area Imager · USB · PRZM Imaging · Omnidirectional · IP42 · Plug-and-Play · Black
The Zebra DS2208 is an affordable 1D/2D corded area imager designed for retail POS, hospitality, and light manufacturing environments where reliable 2D scanning is needed without compromise. Powered by Zebra's PRZM Intelligent Imaging technology, the DS2208 delivers first-time, every-time scanning of all 1D and 2D barcodes — including damaged, wrinkled, and poorly printed codes — as well as barcodes displayed on mobile phone screens. Auto-host detect cables plug directly into the POS system and identify the interface automatically. This AZW kit includes the scanner and a shielded USB cable (CBA-U21-S07ZBR).
| SKU | DS2208-SR7U2100AZW |
| EAN | 5711783381228 |
| Scanner Type | 1D/2D Area Imager · Standard Range · PRZM Intelligent Imaging · Omnidirectional |
| Scanning Range | ~1.2 cm to ~37 cm (varies by barcode type and density) |
| Screen Scanning | Yes — reads barcodes from mobile phone and tablet screens |
| 1D Barcodes | Code 39, Code 128, UPC/EAN, GS1 DataBar, Interleaved 2 of 5, Codabar and more |
| 2D Barcodes | QR Code · PDF417 · Data Matrix · Aztec · Maxicode and more |
| Interfaces | USB · RS-232 · Keyboard Wedge (KBW) · TGCS IBM 46XX over RS485 |
| Deployment | Auto-host detect · Plug-and-play · Pre-configured out of box |
| Keyboards | 90+ international keyboard layouts supported |
| Cable Compatibility | Backwards compatible with all existing Zebra LS2208 series cables |
| Management | 123Scan software (free) · Scanner Management Service · Scanner Control App |
| IP Rating | IP42 |
| Drop Resistance | Multiple drops from 1.5 m (5 ft) to concrete · 2,500 tumbles |
| Weight | 161.6 g (5.7 oz) |
| Dimensions | 16.5 × 6.6 × 9.9 cm |
| Warranty | 5-year Zebra factory warranty |
| Colour | Black |
| In the Box | DS2208 Scanner · Shielded USB Cable CBA-U21-S07ZBR (7 ft / ~2 m) |
BUYER'S GUIDE
Best For: Retail POS, grocery checkout, hospitality, light manufacturing, and any environment currently running Zebra LS2208 scanners and looking to upgrade to 2D without changing cables or POS infrastructure. The DS2208 is the natural next step from the LS2208.
DS2208 vs LS2208: The LS2208 is a 1D-only laser scanner. The DS2208 adds full 2D capability (QR codes, PDF417, Data Matrix, screen scanning) at a minimal price premium. Both use the same cables, same footprint, and same plug-and-play simplicity. For any business expecting to handle digital coupons, loyalty cards, or QR-based workflows, the DS2208 is the correct investment.
AZW vs SGW Kit: This AZW kit includes the scanner and USB cable only — ideal when a stand is not needed (handheld use at checkout). The SGW variant adds a presentation stand for hands-free scanning. Both kits use the same DS2208 scanner body.
5-Year Warranty: The DS2208 corded scanner carries a 5-year Zebra factory warranty — the longest in its class. For additional coverage with faster repair turnaround, Zebra OneCare service plans are available as optional add-ons.
