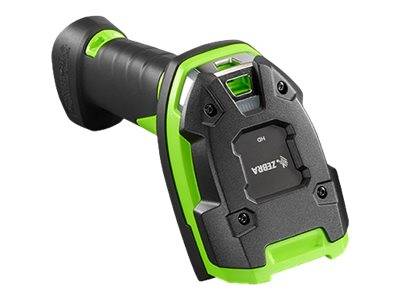

Zebra DS3608-HD | Ultra-Rugged Corded 1D/2D Barcode Scanner | High Density | IP67 | Industrial Green | Scanner Only
Overview
The Zebra DS3608-HD is an ultra-rugged corded barcode scanner built for electronics manufacturing, medical device production, and any environment where standard scanners fail. Its high-density imager captures the smallest 1D and 2D barcodes — down to 3 mil — on PCB components, medical labels, and tiny parts, even through heavy shrink-wrap or when damaged and poorly printed.
Sealed to IP67 and rated for multiple 10 ft drops to concrete, the DS3608-HD operates reliably from -30°C to +50°C. The vibration motor provides tactile decode confirmation in noisy production environments. This is the Scanner Only configuration — a compatible cable (e.g. CBA-U46-S07ZAR USB) is required and sold separately.
Note: The EAN provided by the distributor for this SKU is 0783555103449.
Key Specifications
| Scanning Technology | High Density 1D/2D Area Imager | 1280 × 960 px sensor | 31° H × 23° V FOV |
| Min. Barcode Width | 3 mil (0.0762 mm) |
| 1D Symbologies | Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, GS1 DataBar, and more |
| 2D Symbologies | PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR, Aztec, MaxiCode, Han Xin, TLC-39, Composite Codes |
| OCR & Other | OCR, photos, documents; Postal Codes |
| Host Interfaces | USB, RS232, Keyboard Wedge, Industrial Ethernet |
| Drop Specification | Multiple drops from 10 ft (3 m) to concrete at room temperature; 5,000 tumbles |
| Sealing | IP67 — fully dust-tight; immersion in water up to 1 m for 30 minutes |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| User Indicators | LEDs (front & rear), beeper, vibration motor |
| Multi-Code | Captures up to 20 barcodes simultaneously |
| Power | Host powered: 4.5–5.5 VDC | External PSU: 11.4–12.6 VDC |
| Dimensions | 185.4 × 76.2 × 132.1 mm (7.3" × 3" × 5.2") |
| Weight | 309 g (10.9 oz) |
| Color | Industrial Green |
| Management | Zebra DataCapture DNA — 123Scan, Remote Diagnostics, Scanner Management Service (SMS) |
| Warranty | 3-year manufacturer warranty |
| In the Box | Scanner only — cable required (e.g. CBA-U46-S07ZAR, sold separately) |
| Part Number | DS3608-HD20003VZWW |
| EAN | 0783555103449 |
Use Cases
Electronics Manufacturing: First-time capture of 3 mil DataMatrix and QR codes on PCB components and subassemblies, even under heavy shrink-wrap or with damaged labels.
Medical Device Production: Reads UDI barcodes on medical instruments and packaging — including tiny 2D codes on surgical tools and implant packaging.
Pharmaceutical & Warehouse: Multi-code capture processes up to 20 barcodes simultaneously; operates in freezer environments down to -30°C.
General Industrial: Robust enough for any production line, dock, or warehouse floor where standard scanners repeatedly fail from drops, dust, or water.
Frequently Asked Questions
Does this scanner come with a cable?
No. The DS3608-HD20003VZWW is the Scanner Only configuration. A compatible cable is required — the most common choice is the Zebra CBA-U46-S07ZAR (7 ft shielded USB Type A). RS232 and other interface cables are also available.
What is the difference between the DS3608-HD and the DS3608-SR?
The HD (High Density) variant is optimized for small, dense barcodes — down to 3 mil — at close range (typically 0–20 cm). The SR (Standard Range) variant is better for standard retail barcodes at 5–65 cm. Choose HD for manufacturing and medical; SR for retail and warehousing.
Can the DS3608-HD read barcodes through shrink-wrap or damaged labels?
Yes. The DS3608-HD's advanced area imager is specifically engineered to decode barcodes under heavy shrink-wrap and read damaged, dirty, or poorly printed labels that defeat standard scanners.
What is the DS3608-HD20003VZWW vibration motor for?
The vibration motor provides tactile confirmation of a successful scan — essential in loud manufacturing and production environments where the beeper tone may not be audible. The VZWW suffix in the part number indicates this model includes the vibration motor.
