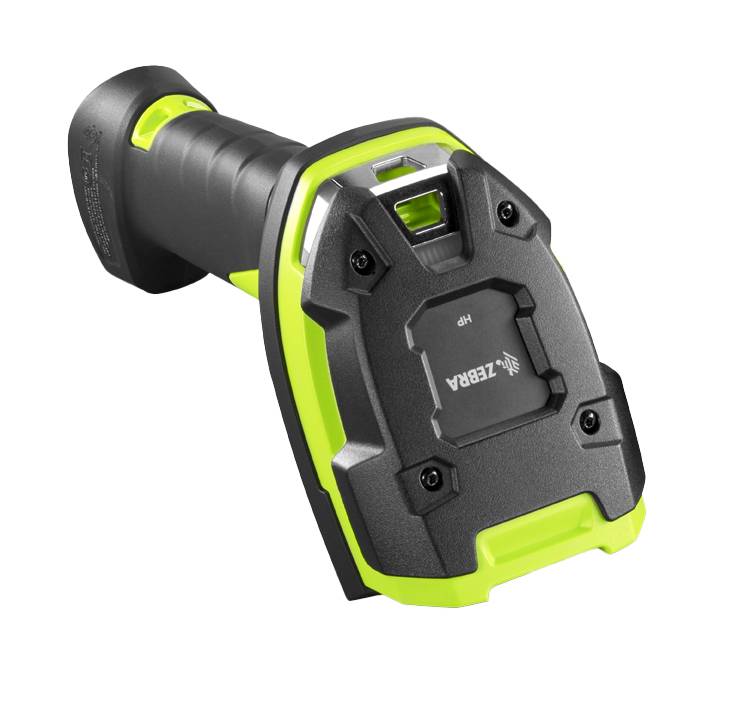

Zebra DS3608-HP
Ultra-Rugged Corded 1D/2D Scanner — High Performance | 7 ft Range | IP65/IP68 | Industrial Green — DS3608-HP20003VZWW
The Zebra DS3608-HP is part of the DS3600 Ultra-Rugged Series — the most rugged corded scanner in its class, built for the world's toughest warehouse and manufacturing environments. The High Performance (HP) scan engine captures 1D and 2D barcodes up to 7 ft / 2.1 m away, even damaged, dirty, poorly printed or under shrink wrap. With dual IP65/IP68 sealing, a 10 ft / 3 m drop spec and 7,500 tumble rating, the DS3608-HP is virtually indestructible. This SKU (DS3608-HP20003VZWW) is Scanner Only — cable not included.
Key Specifications
| Barcode Types | 1D and 2D — all standard symbologies; reads damaged, dirty and poorly printed labels |
| Scan Engine | High Performance (HP) — 30% greater working range than standard class scanners |
| Scan Range | Up to 7 ft / 2.1 m (High Performance engine) |
| Multicode | Captures up to 20 barcodes simultaneously on one label |
| Data Capture | Barcodes (1D/2D), OCR, photos, documents |
| Interfaces | USB, RS232, KBW — multi-interface; cable sold separately |
| Sealing | Dual IP65 + IP68 — dustproof and fully waterproof |
| Drop Specification | 10 ft / 3 m to concrete — highest in class |
| Tumble Rating | 7,500 tumbles at 1.64 ft / 0.5 m |
| Temperature | Extreme temperature rated — suitable for freezer environments |
| Feedback | Vibration motor + beep + LED — configurable mix-and-match modes |
| Management | Zebra DataCapture DNA — 123Scan, Remote Management, Scanner Management Service |
| Color | Industrial Green |
| In the Box | Scanner only — USB/RS232/KBW cable required separately |
| Warranty | 3-year manufacturer warranty |
| Part Number | DS3608-HP20003VZWW |
| EAN | 5712505831960 |
Frequently Asked Questions
No. DS3608-HP20003VZWW is Scanner Only — the interface cable (USB, RS232 or KBW) must be ordered separately. For a kit with USB cable, see DS3608-HP3U4602VZW.
The HP engine delivers 30% greater working range — scanning up to 7 ft / 2.1 m away. Essential for scanning items on high shelving or conveyor belts without requiring workers to lean in.
Multicode mode allows the DS3608-HP to capture up to 20 barcodes simultaneously from a single scan of a multi-barcode label — dramatically accelerating complex labelling workflows.
Yes. The DS3608-HP is rated for extreme temperatures including freezer use — suitable for cold storage warehouses, food distribution and refrigerated logistics.
Buyer's Guide
The DS3608-HP is the top-tier choice for demanding warehouse and manufacturing scanning. Its 7 ft HP range, dual IP65/IP68 sealing, 10 ft drop spec and multicode capability set it apart. DataCapture DNA ensures full fleet manageability over the device's lifetime.
Important: This SKU is scanner only — a cable is required separately. For a USB kit, see DS3608-HP3U4602VZW. For the cordless version, see DS3678-HP.
