Zebra DS3678-HP | Ultra-Rugged Cordless 2D Barcode Scanner | High Performance | Bluetooth 4.0 | USB Kit (Scanner + Cradle + Cable Incl.)
The Zebra DS3678-HP is an ultra-rugged cordless 2D barcode scanner built for the most demanding work environments. With a High Performance imager, IP67 sealing, and a 2.4 m drop specification, it delivers fast, reliable scanning whether you're on the warehouse floor, in the field, or on a production line — without ever reaching for a cable.
The HP imager decodes standard and difficult-to-read barcodes — damaged labels, poor print quality, small-pitch codes — at speed. Omni-directional scanning means no alignment needed; just point and scan.
Fully sealed against dust ingress and submersion up to 1 m. Survives repeated 2.4 m drops to concrete — the DS3678-HP is engineered to outlast the shift, not just survive it.
Connects wirelessly to the included cradle via Bluetooth 4.0 with a range of up to 100 m line-of-sight. The cradle doubles as a charger and USB host interface, keeping the scanner ready at all times.

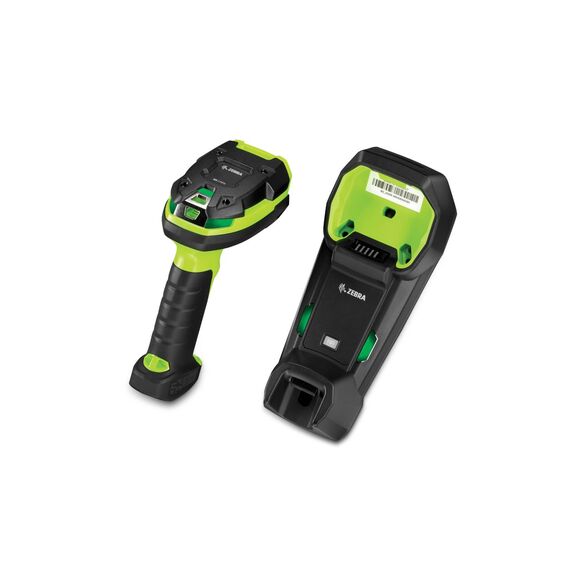

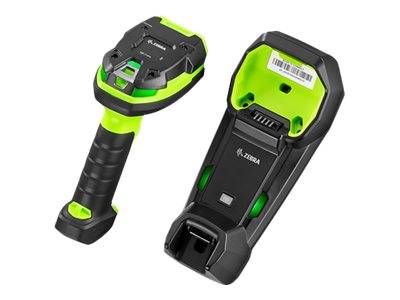

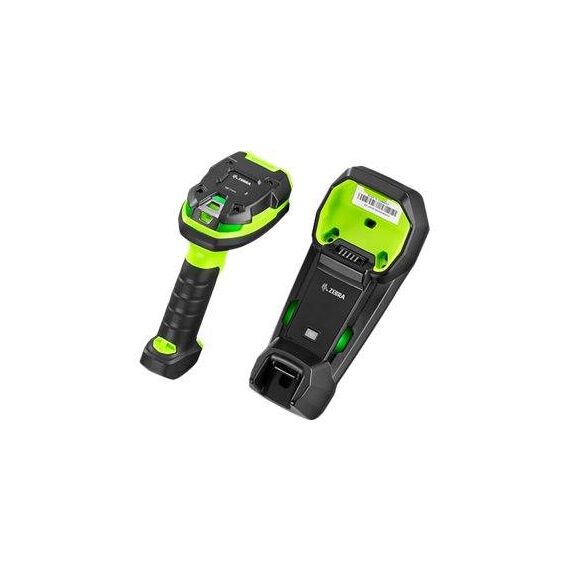

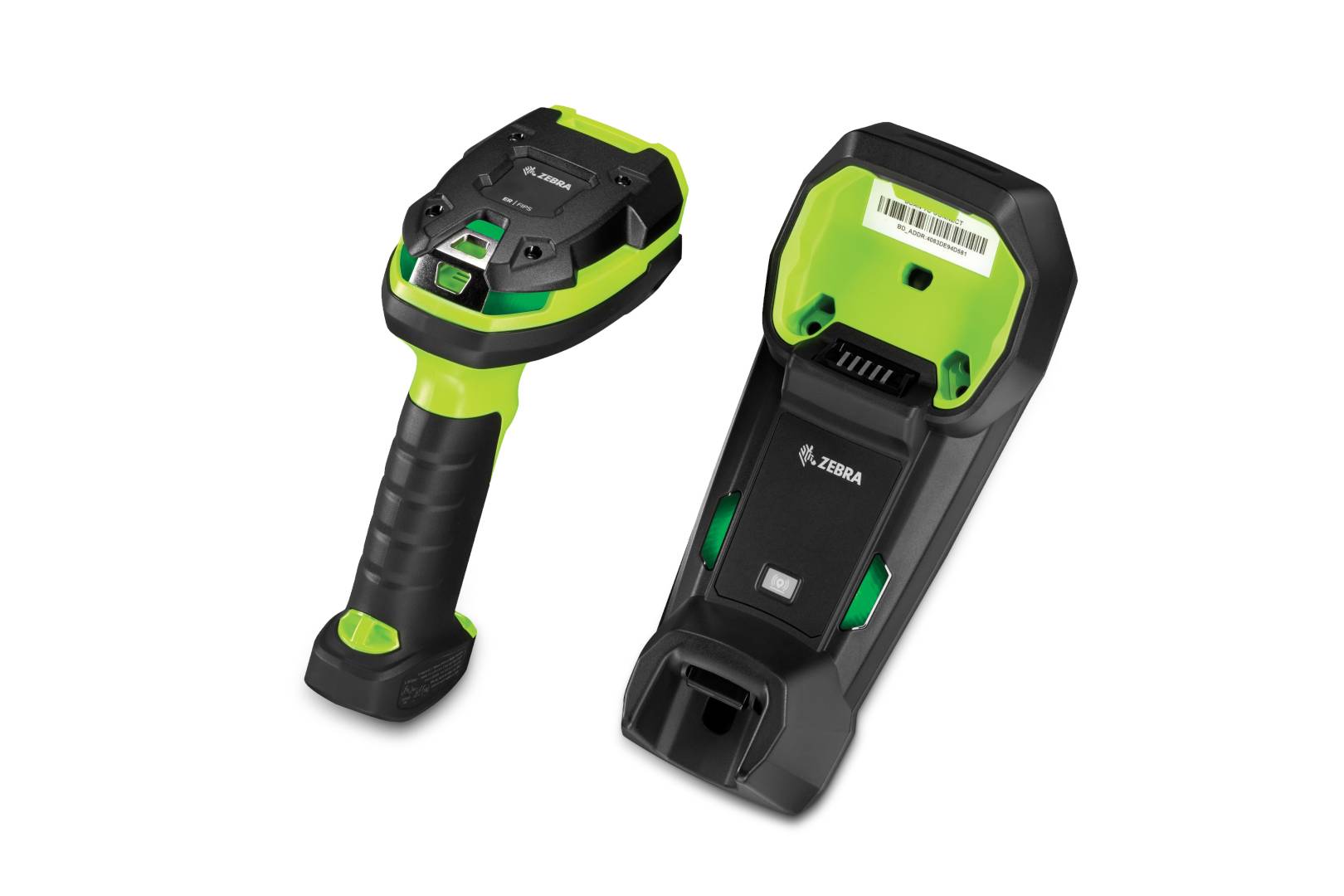

This kit includes the DS3678-HP scanner, STB3678 single-slot cradle, and USB communication cable. Plug in, pair, and scan — no additional accessories required for USB host environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | DS3678-HP |
| SKU | DS3678-HP3U4210SFW |
| Imager Type | High Performance (HP) 2D Imager |
| Connectivity | Bluetooth 4.0 (Class 1), USB via cradle |
| Interface (Kit) | USB |
| Sealing | IP67 (dust-tight, 1 m immersion) |
| Drop Specification | 2.4 m (8 ft) to concrete |
| Wireless Range | Up to 100 m line-of-sight |
| Scan Pattern | Omni-directional |
| Barcodes Supported | 1D, 2D, PDF417, QR, DataMatrix, Postal |
| Kit Contents | Scanner + STB3678 Cradle + USB Cable |
| Operating Temp | -20°C to 50°C |
| Weight | Approx. 220 g (with battery) |
Frequently Asked Questions
Yes. The HP imager can decode barcodes displayed on screens, including those with low brightness or high glare, making it suitable for digital ticketing and mobile workflows.
The HP variant uses a High Performance imager optimised for challenging barcodes — damaged, poorly printed, or very small — at longer read distances compared to the standard imager.
Yes. This USB kit (SKU ending in 3U42) includes the STB3678 single-slot cradle, USB cable, and the DS3678-HP scanner. No additional accessories are needed for USB deployment.
The cradle is required for charging and for the USB host connection. Without the cradle the scanner cannot communicate with a USB host or charge its battery.
