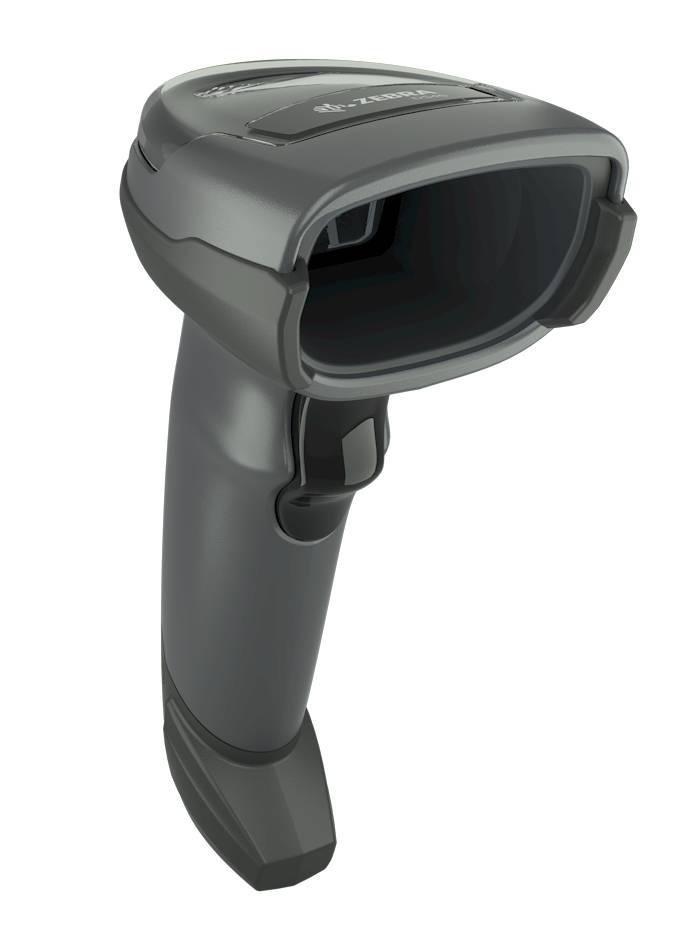

Zebra DS4608-HD | 2D Handheld Scanner | High Density | USB | PRZM Imaging | Black
Zebra DS4608-HD
Twilight Black · 2D Megapixel · High Density · USB · PRZM Imaging · IP52
The Zebra DS4608-HD is a premium corded handheld scanner built for retail and commercial environments where barcodes come in every form — tiny jewellery tags, dense codes through cellophane, DotCode, DPM on parts, mobile coupons on screens, and wide carton labels in the backroom. PRZM Intelligent Imaging, an 800 MHz processor and a high-resolution megapixel sensor combine to capture even the most challenging barcodes with near-instant decode speed.
| Part Number | DS4608-HD7U2100AZW |
| EAN | 8596375197725 |
| Scanner Type | Corded handheld · 2D Megapixel Area Imager · High Density optics |
| Processor | 800 MHz |
| Imaging Technology | Zebra PRZM Intelligent Imaging · Megapixel sensor |
| Decode Range | Up to 28 in. / 71 cm (13 mil UPC) |
| 1D Barcodes | Code 39, Code 128, Code 93, Codabar, UPC/EAN, I 2 of 5, GS1 DataBar and more |
| 2D Barcodes | PDF417, DataMatrix, QR Code, Aztec, MaxiCode, DotCode, Dotted DataMatrix, Han Xin, Postal Codes |
| Special Capabilities | DPM (Direct Part Marking) · OCR · Multi-Code Data Formatting · Preferred Symbol · Document Capture |
| Interface | USB (shielded cable CBA-U21-S07ZBR included) |
| User Indicators | Direct Decode Indicator · Good decode LED · Rear-view LEDs · Beeper (adjustable tone & volume) |
| IP Rating | IP52 · Double-sealed optical system |
| Drop Resistance | 1.8 m (6 ft) to concrete · 2,000 tumble cycles |
| Colour | Twilight Black |
| Warranty | 5 Years (standard) |
| In the Box | DS4608-HD scanner · Shielded USB cable CBA-U21-S07ZBR |
BUYER'S GUIDE
For whom: Retailers in jewellery, electronics, pharmaceuticals and manufacturing who need to read small, high-density barcodes, DPM codes, or DotCode through packaging — as well as standard POS scanning. One scanner that handles it all.
Real reason to buy: PRZM Intelligent Imaging combined with an 800 MHz processor means the DS4608-HD decodes barcodes that other scanners refuse — wrinkled labels, low-contrast prints, codes through cellophane, tiny jewellery tags — without slowing down the transaction.
Know before you buy: High Density optics reduce the working range versus the SR model — optimal reading distance for small codes is closer to the scanner window. If your primary use case is long-range checkout scanning of standard UPC codes, the DS4608-SR may be more suitable.
Verdict: The DS4608-HD is the right choice when your environment includes dense, small, or non-standard barcodes alongside everyday scanning. Backed by a 5-year warranty and built to survive the shop floor.
