Zebra DS8178-SR | Cordless 2D Imager | PRZM Imaging | Bluetooth 4.0 | (Scanner Only)

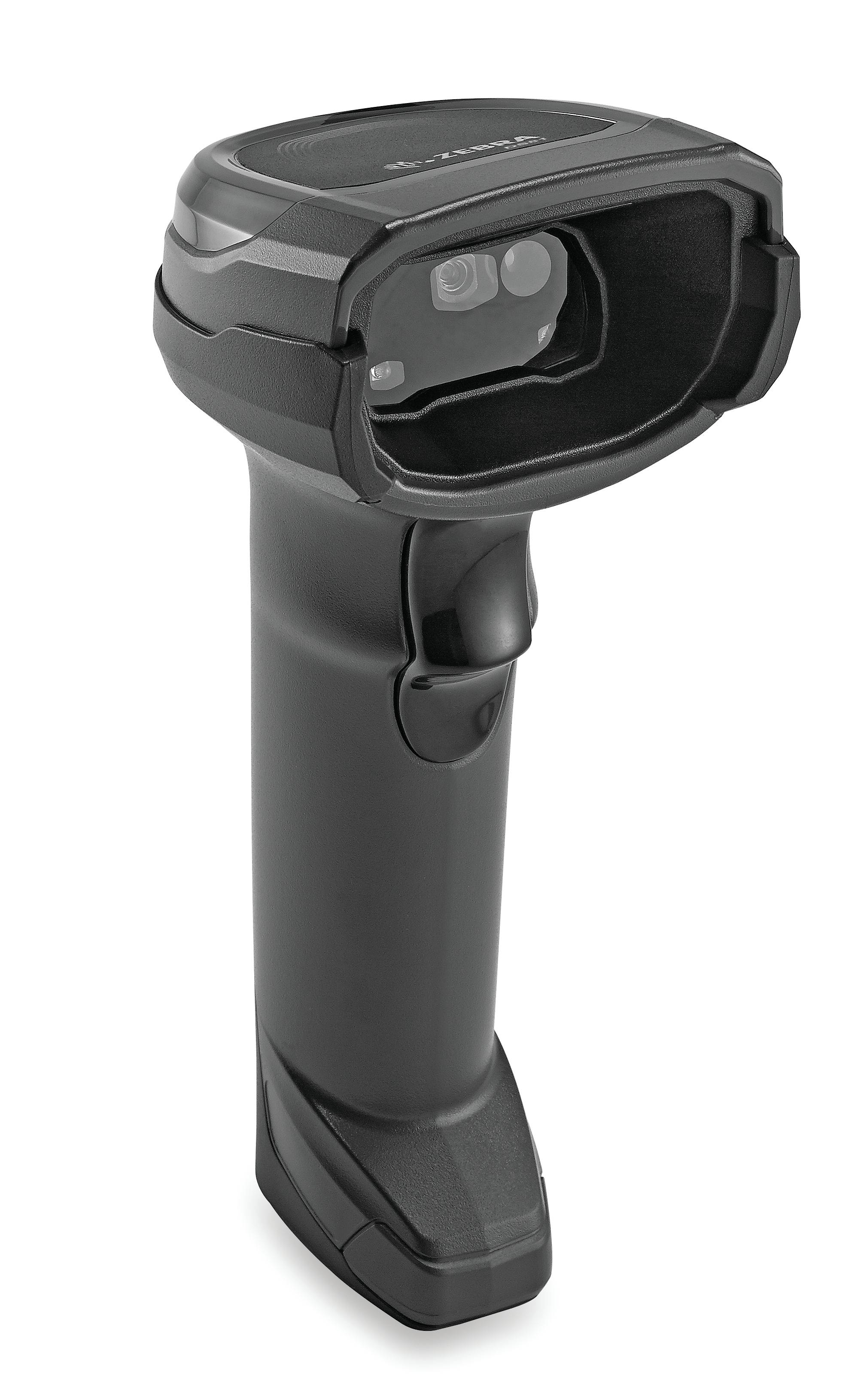

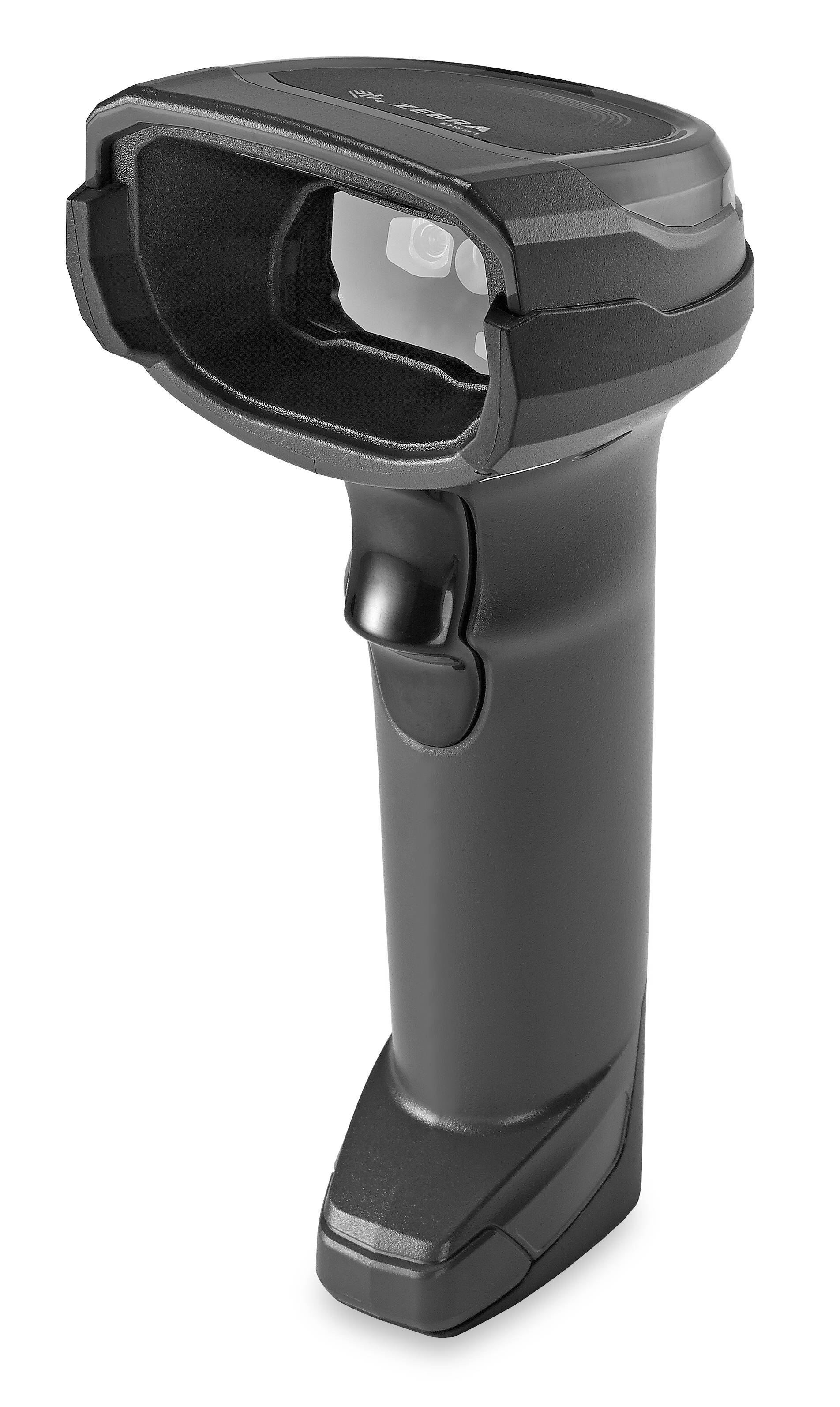

The Zebra DS8178-SR is a cordless 2D area imager built for high-volume retail, hospitality, and light-industrial scanning environments. Powered by Zebra's exclusive PRZM Intelligent Imaging technology and an 800 MHz processor, it captures the full spectrum of challenging barcodes — dense, poorly printed, crinkled, faded, distorted, or damaged — without hesitation. The PowerPrecision+ 2,500 mAh smart battery delivers 65,000 scans per charge, Bluetooth 4.0 Class 1 extends wireless range to 100 m, and IP52 sealing withstands daily operational exposure. This listing is for the scanner only — a compatible cradle and cable must be sourced separately.
PRZM Intelligent Imaging — No Barcode Too Difficult
PRZM (Patent-pending Recognition and Zone Management) is Zebra's proprietary imaging algorithm that works in concert with the 1,280 × 960 megapixel sensor and 800 MHz processor to decode barcodes that defeat conventional imagers. Dense GS1 DataBar, Digimarc digital watermarks, DotCode, securPharm, and Dotted DataMatrix codes are all within range — as are screen-displayed barcodes from mobile devices. In retail environments where label quality is inconsistent across suppliers, PRZM reduces missed scans and eliminates the need for repeated attempts at difficult reads.
PowerPrecision+ — 65,000 Scans Per Charge
The 2,500 mAh PowerPrecision+ smart battery delivers more than three full days of continuous scanning — or 65,000 scans — per charge. PowerPrecision+ adds intelligent battery management: operators can see remaining battery charge level at a glance before starting a shift, and IT administrators can monitor battery health across the fleet. An alternative PowerCap capacitor (ordered separately) provides a different value proposition: 2,000 scans per charge, but rechargeable to 100 scans in just 35 seconds in the cradle — suited to scan-intensive burst workflows where a scanner rarely leaves the cradle for long.
Bluetooth 4.0 Class 1 — 100 m Wireless Range
The DS8178-SR operates on Bluetooth 4.0 with BLE, supporting both Class 1 (100 m / 330 ft) and Class 2 (10 m / 33 ft) operation depending on the paired cradle or host. Serial Port and HID profiles are both supported, enabling compatibility with a wide range of POS, WMS, and retail software stacks without configuration. The DS8178 is also backward-compatible with Zebra's existing DS8108 cradle infrastructure — a significant practical advantage for fleet upgrades where existing cradle installations can be retained.
Omni-Directional Scanning & Feedback
The 617 nm amber LED illumination and 48° × 37° field of view enable omni-directional scanning of virtually any barcode orientation at distances up to 61 cm (24 in). Decodes are confirmed via LED, audible beeper, and a bright aiming spot. The ergonomic design at 235 g and 167.6 × 66 × 106.7 mm balances naturally in the hand, reducing fatigue in prolonged checkout or pick-and-pack workflows.
Durability & Environmental Rating
IP52 seals the scanner against dust ingress and light liquid splash — adequate for retail, hospitality, and light-warehouse environments. Multiple 1.8 m (6 ft) drop-to-concrete certification covers the incidental drops of high-frequency daily use. Operating temperature range is 0°C to 50°C (32°F to 122°F). This model is the standard (non-healthcare) variant — for disinfectant-ready clinical environments, the DS8178-HC is recommended.
| Specification | Detail |
|---|---|
| Scanner Type | 2D Area Imager, Omni-directional, Cordless |
| Sensor Resolution | 1,280 × 960 pixels (megapixel) |
| Imaging Engine | PRZM Intelligent Imaging, 800 MHz processor |
| Light Source | Circular 617 nm amber LED |
| Field of View | Horizontal 48° / Vertical 37° |
| Scan Range | Up to 61 cm (24 in) |
| 1D Symbologies | Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, GS1 DataBar, Korean 3 of 5, Base 32 |
| 2D Symbologies | QR Code, Micro QR, DataMatrix, Dotted DataMatrix, PDF417, Micro PDF417, Aztec, MaxiCode, Composite, TLC-39, Han Xin, DotCode, securPharm, Postal, Digimarc |
| Wireless | Bluetooth 4.0 with BLE, Class 1 (100 m) / Class 2 (10 m) |
| Interfaces | USB, RS-232, Keyboard Wedge, TGCS IBM 46xx over RS485 |
| Battery | PowerPrecision+ Li-Ion 2,500 mAh |
| Scans per Charge | 65,000 (3+ days continuous) |
| IP Rating | IP52 |
| Drop Specification | Multiple drops from 1.8 m (6 ft) to concrete |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | 235.3 g (0.52 lbs) |
| Dimensions | 167.6 × 66 × 106.7 mm (6.6 × 2.6 × 4.2 in) |
| Colour | Twilight Black |
| Kit Contents | Scanner only — cradle and cable required separately |
Why does the DS8178 not include a cradle — and which cradle do I need?
The DS8178-SR0F007ZZWW is a scanner-only SKU designed for customers who already own a compatible Zebra cradle, or who want to select a specific cradle configuration. Compatible cradles include the STB8178 (standard single-slot) and STB8108 (backward-compatible). Your cradle and interface cable must be ordered separately.
What is the difference between the PowerPrecision+ battery and the PowerCap?
The PowerPrecision+ is a 2,500 mAh Li-Ion battery providing 65,000 scans per charge — ideal for operations where the scanner is used continuously away from the cradle. The PowerCap capacitor charges to 100 scans in just 35 seconds and provides 2,000 scans per full charge — better suited to scan-burst workflows where the scanner returns to the cradle frequently between use.
Is the DS8178 compatible with existing DS8108 infrastructure?
Yes. The DS8178 is designed to be backward-compatible with Zebra DS8108 cradle infrastructure, allowing organisations to upgrade to the DS8178 without replacing existing cradle installations — a major operational and cost advantage for fleet upgrades.
Can the DS8178-SR read Digimarc watermarks and securPharm codes?
Yes. PRZM Intelligent Imaging supports Digimarc digital watermarks, securPharm (GS1-128 / DataMatrix on pharmaceutical packs), DotCode, and Dotted DataMatrix — extending coverage beyond standard retail into pharmaceutical verification and digital watermarking applications.
