Zebra DS8178-SR | 2D Cordless Scanner | Bluetooth 4.0 | PowerCap | (USB Kit — Scanner + Cradle + Cable Incl.)
The Zebra DS8178-SR is a cordless Bluetooth 4.0 barcode scanner built for high-traffic environments where the scanner returns to a cradle regularly between uses. This kit is the PowerCap version — the scanner uses a capacitor instead of a lithium-ion battery, eliminating battery ageing, replacement costs, and the risk of a completely depleted device. With Zebra's PRZM Intelligent Imaging engine, IP52 sealing, and a 6 ft drop spec, it delivers reliable 1D/2D scanning in a practical cordless form factor for point-of-sale, retail, and light logistics workflows.
The PowerCap capacitor is the defining feature of this variant. A full charge delivers 2,000 scans. But the real operational advantage is the recovery rate: after just 35 seconds in the cradle, the scanner has enough charge for 100 scans. An operator who forgets to cradle the scanner before a break won't return to a dead device — a brief touch of the cradle is enough. Unlike Li-ion batteries, the capacitor does not degrade over charge cycles, removing battery replacement from the maintenance schedule entirely.
The PRZM engine with 1,280 × 960 pixel sensor reads all major 1D and 2D symbologies including QR Code, Data Matrix, PDF417, and GS1 formats. Bluetooth 4.0 with BLE provides a wireless range of up to 100 m (330 ft) to the cradle, with the cradle connecting to the host PC via the included 2.1m shielded USB cable.
IP52-rated against dust and light water splashes. Withstands 6 ft (1.8 m) drops to concrete and 2,000 tumble cycles. Operating temperature from 0°C to 50°C covers standard indoor commercial and light industrial environments. At 235g with a comfortable grip design, it is well-suited for sustained use at the checkout, service desk, or pick station.
| Specification | Detail |
|---|---|
| Model | DS8178-SR7U210SPFW |
| Scan Engine | PRZM Intelligent Imaging — 1,280 × 960 px |
| Connectivity | Bluetooth 4.0 with BLE — up to 100 m range |
| Power | PowerCap capacitor — 2,000 scans/full charge |
| Quick Charge | 100 scans after 35 seconds in cradle |
| IP Rating | IP52 |
| Drop Spec | 6.0 ft (1.8 m) to concrete |
| Tumble Spec | 2,000 × 0.5 m tumbles |
| Operating Temp | 0°C to 50°C |
| Weight | 235 g |
| USB Cable | 2.1m shielded USB (Series A) |

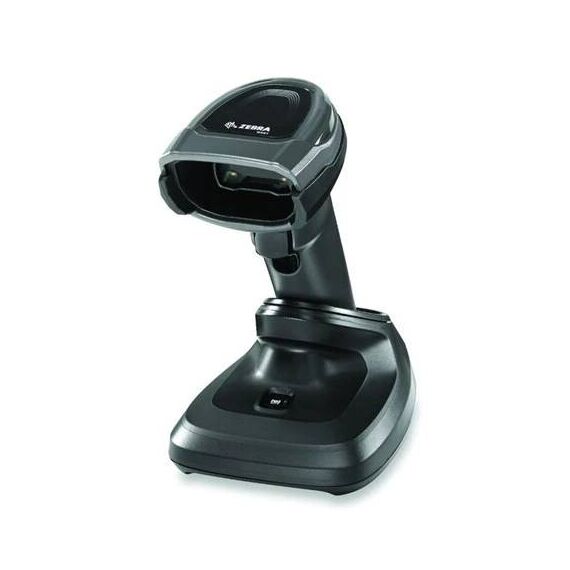

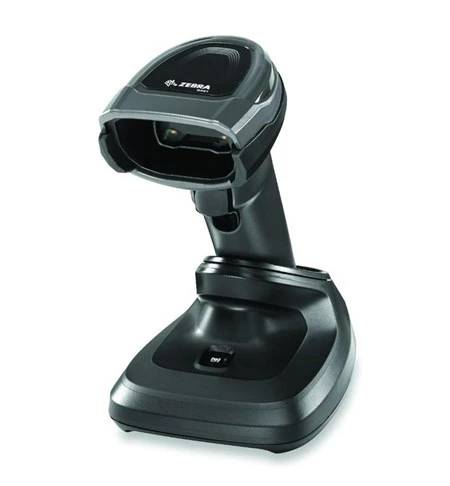

| Kit Contents | Scanner (PowerCap) + cradle + 2.1m USB cable |
What is a PowerCap and how is it different from a battery?
A PowerCap is a capacitor — it stores energy electrochemically but does not degrade over charge cycles like a lithium-ion battery. It charges much faster than a battery and never needs replacing. The trade-off is lower total energy storage: 2,000 scans per full charge versus ~65,000 for the Li-ion battery version.
What happens if I forget to cradle the scanner and it runs out of charge?
Place it in the cradle for 35 seconds — you'll have 100 scans immediately. A full charge takes approximately 4 minutes. There is no long recovery wait like with a depleted Li-ion battery.
Is this the right version for high-volume scanning away from the cradle?
Not necessarily. If operators carry the scanner for extended periods without returning to the cradle, the PowerPrecision+ battery version (DS8178-SR7U2100SFW) is a better fit with its 65,000-scan capacity.
Does this scanner read 2D barcodes?
Yes — the PRZM imager reads all standard 1D and 2D symbologies including QR Code, Data Matrix, PDF417, Aztec, and GS1 formats.
