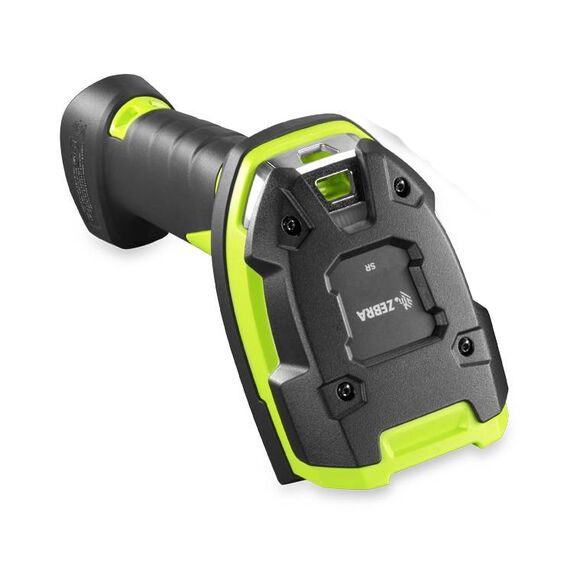

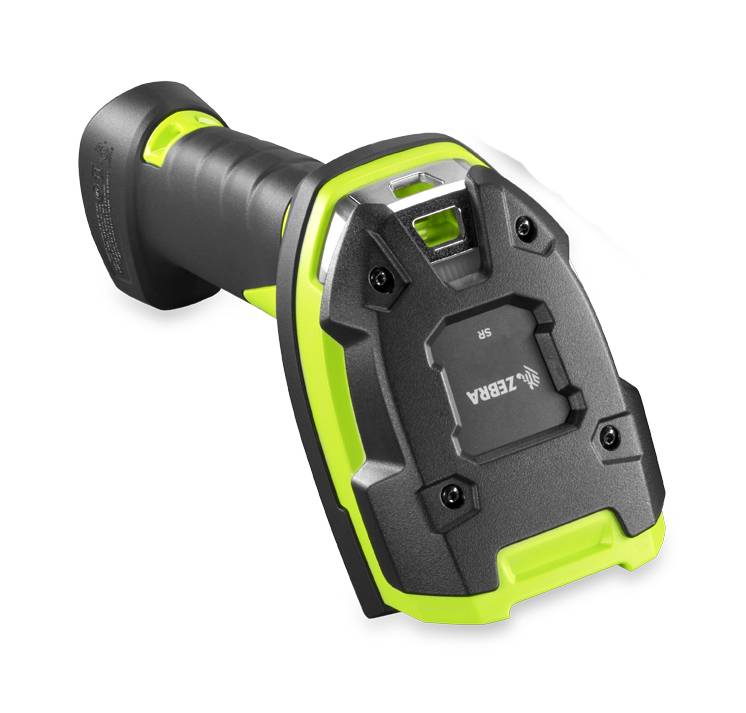

Zebra LI3608 | Ultra-Rugged Corded 1D Linear Imager | IP67 | 10 ft Drop | Vibration Motor | Industrial Green | Scanner Only
Overview
The Zebra LI3608 is a member of the 3600 Ultra-Rugged Series — a family of scanners engineered specifically for the harshest industrial environments where standard scanners fail within weeks. As a corded 1D linear imager, the LI3608 delivers lightning-fast, first-pass capture of virtually any 1D barcode, including damaged, dirty, and poorly printed labels, with an advanced linear imager that provides a working range 30% larger than comparable devices.
Its industrial credentials are unmatched: IP67 sealing (full immersion for 30 minutes), 10 ft / 3.0 m drop specification, 5,000 tumble cycles, and operation from -30°C to +50°C. The vibration motor, multi-LED indicators (red and green), and loud beeper provide flexible feedback options for noisy or high-glare environments. This is the Scanner Only configuration in Industrial Green with vibration motor — an interface cable is required and sold separately.
Note: The EAN provided by the distributor for this SKU is 8437016535295.
Key Specifications
| Scanning Technology | 1D Linear Imager | Standard Range | Advanced linear imaging — 30% larger working range |
| Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| Host Interfaces | USB, RS-232, Keyboard Wedge — multi-interface (one scanner for any host) |
| Drop Specification | Multiple drops from 10 ft (3.0 m) to concrete |
| Tumble Specification | 5,000 tumbles — simulates real-world rolling drops |
| Sealing | IP67 — fully dust-tight; immersion in water up to 1 m for 30 minutes |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) — operates in freezers |
| User Indicators | Vibration motor + red/green LEDs + beeper | Industry's sharpest aiming pattern |
| Management | Zebra DataCapture DNA — 123Scan, ScanSpeed Analytics, Remote Diagnostics, SMS |
| Dimensions | 185.4 × 76.2 × 132.1 mm (7.3" × 3.0" × 5.2") |
| Color | Industrial Green |
| Special Features | ScanSpeed Analytics | PowerPrecision+ battery monitoring (LI3678 cordless variant) | Wi-Fi Friendly Mode (LI3678) |
| In the Box | Scanner only — cable required (USB: CBA-U46-S07ZAR recommended; RS-232 also available) |
| Warranty | 3-year manufacturer warranty |
| Part Number | LI3608-SR00003VZWW |
| EAN | 8437016535295 |
Use Cases
Warehouse & Distribution: Survives repeated drops from pallet height onto concrete floors — the primary failure mode of standard industrial scanners. Operates at -30°C for cold storage and freezer warehouse environments.
Manufacturing Shop Floor: IP67 sealing withstands hosing down, coolant splashes, and wash-down procedures. The 30%-larger working range reduces operator repositioning and increases throughput.
Outdoor & Receiving Dock: Direct sunlight immunity and a broad operating temperature range make it reliable in outdoor receiving operations year-round.
Pick List Scanning: The industry's sharpest, brightest aiming pattern enables precise first-time capture of individual barcodes in dense pick lists — critical for accuracy in high-SKU warehouses.
Frequently Asked Questions
Does the LI3608 come with a cable?
No. The LI3608-SR00003VZWW is the Scanner Only configuration — an interface cable is required and sold separately. The USB kit (with CBA-U46-S07ZAR, 7 ft) is available as LI3608-SR3U4600VZW. RS-232 and KBW cables are also available.
What is the difference between the LI3608 and the DS3608?
Both are members of the 3600 Ultra-Rugged Series with the same chassis, drop spec, and IP67 sealing. The LI3608 is a 1D linear imager only. The DS3608 is a 2D area imager that reads QR codes, DataMatrix, and all 2D symbologies in addition to 1D. If you need 2D scanning, choose the DS3608.
Can the LI3608 operate in a freezer warehouse at -30°C?
Yes. The LI3608 is rated for operation down to -30°C (-22°F), making it one of the few corded scanners that functions reliably in deep-freeze cold storage environments without pre-warming or special housing.
What is ScanSpeed Analytics?
ScanSpeed Analytics is a Zebra DataCapture DNA tool that identifies barcodes causing scanning delays — poor print quality, incorrect symbology configuration, or damaged labels. It helps warehouse managers pinpoint and fix scan performance bottlenecks without manual investigation.
