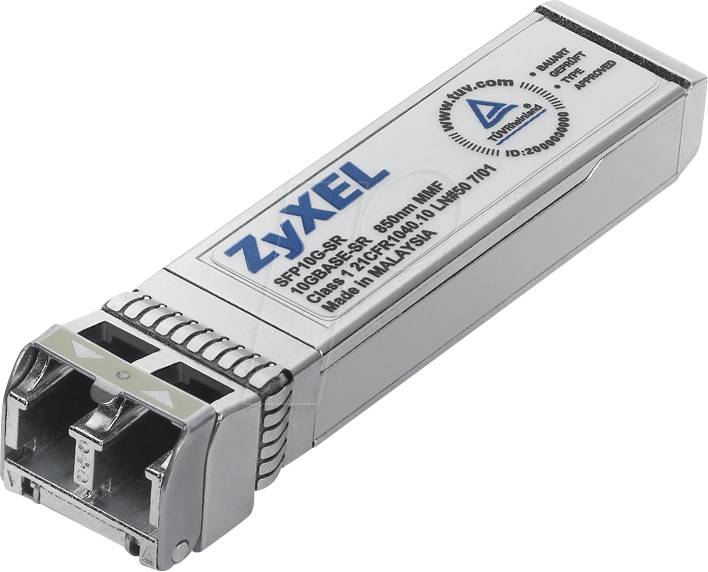

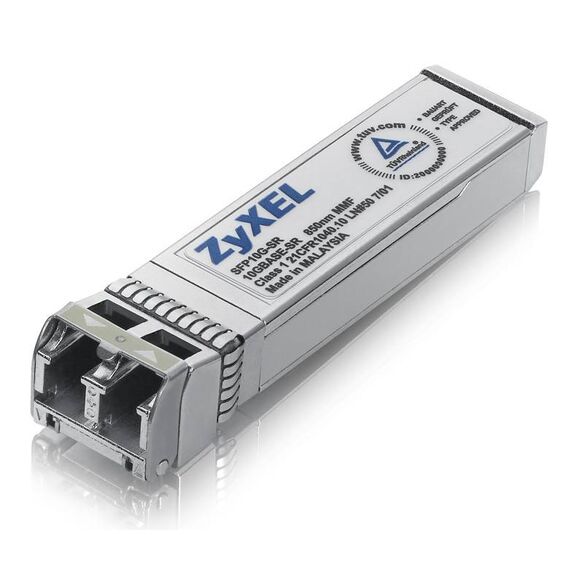

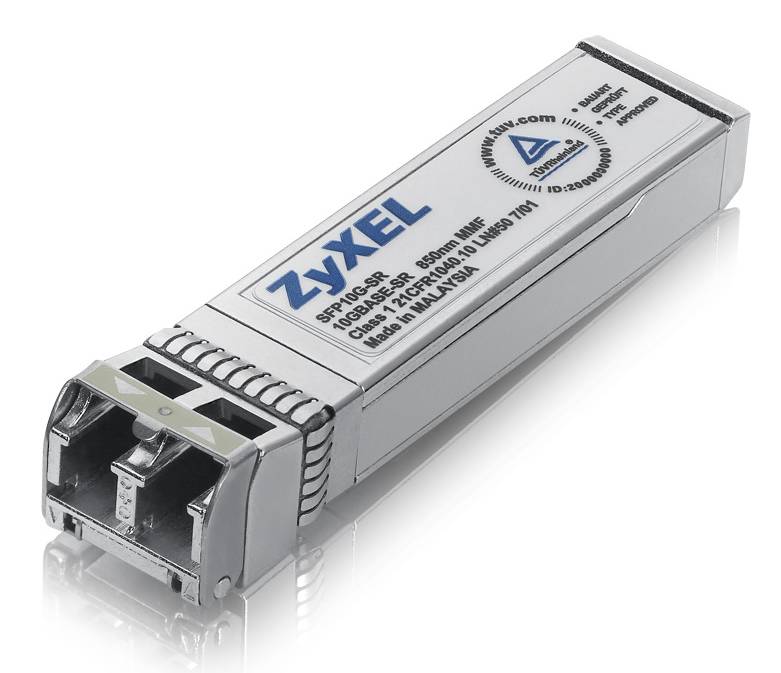

Zyxel SFP10G-SR / SFP+ transceiver module / 10 GigE / 10GBase-SR / LC multi-mode / up to 300 m / 850 nm / for Zyxel XGS1910-24, XGS1910-48 | SFP10G-SR-ZZ0101F
Please sign in so that we can notify you about a reply
Product Features
- Standard-based design assures compatibility
The ZyXEL transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies. - Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device. - Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying fiber. - Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals.
Special Features
- Standard-based design assures compatibility
- Hot-swappable design facilitates network maintenance
- Bi-directional transceivers maximizes usage of existing fiber plant
- Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
Product Specification
Device Type | SFP+ transceiver module |
Form Factor | Plug-in module |
Networking | Networking |
Connectivity Technology | Wired |
Cabling Type | 10GBase-SR |
Data Link Protocol | 10 GigE |
Data Transfer Rate | 10 Gbps |
Optical Wave Length | 850 nm |
Max Transfer Distance | 300 m |
Features | Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI) |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x Ethernet 10GBase-SR - LC multi-mode x 2 |
Compatible Slots | 1 x SFP+ |
Miscellaneous | Miscellaneous |
Compliant Standards | TUV, Laser Class 1, FCC CFR21 Part 1040, FDA, MSA |
Dimensions & Weight | Dimensions & Weight |
Width | 1.48 cm |
Depth | 5.65 cm |
Height | 1.185 cm |
Weight | 20 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Compatibility Information | Compatibility Information |
Designed For | Zyxel XGS1910-24, XGS1910-48 |
Features - Zyxel - SFP10G-SR-ZZ0101F
More Details
Product Code
04:106834
EAN Code
4718937567669
Manufacturer
Zyxel
