Datalogic DSM0422-DL
Fixed Scan Module DSM04XX — 2D Megapixel (MP-DL) | USB | 50 cm Cable | IP54 — DSM0422-DL

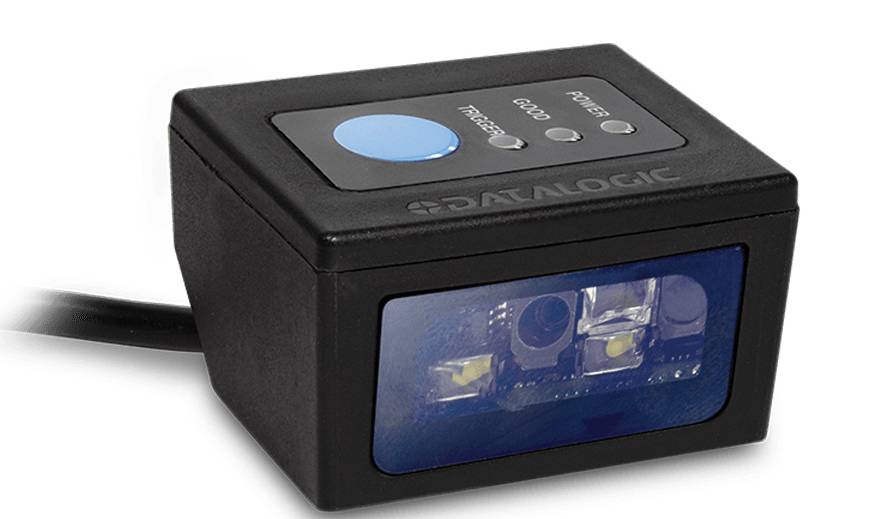

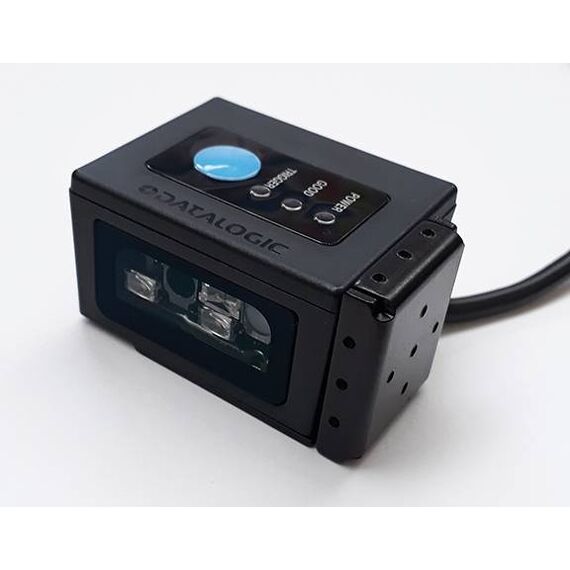

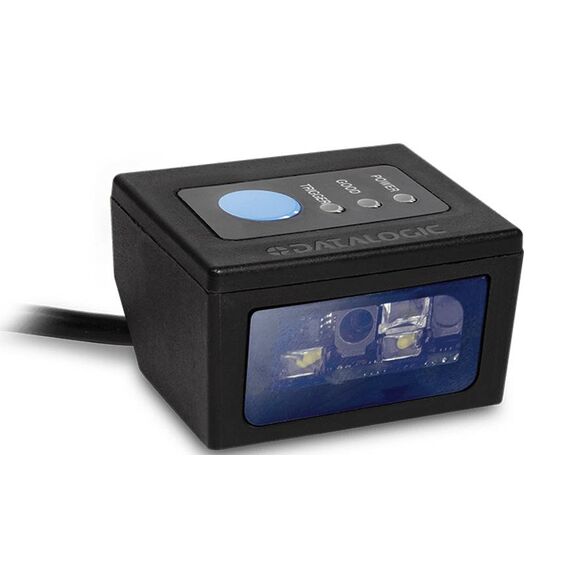

The Datalogic DSM0422-DL is a high-performance fixed 2D scan module from the DSM04XX family, purpose-built for OEM integration into kiosks, self-checkout terminals, ticketing machines, access control systems, autonomous robots and laboratory equipment. At just 49 cm³ (3 in³) — 60% smaller than the previous GFS44XX generation — it delivers megapixel 1280×960 px imaging with Datalogic's signature Green Spot good-read feedback, in a rugged IP54 body that resists cleaning solvents and disinfectants.
Key Specifications
| Barcode Types | 1D and 2D — all standard symbologies (Code 128, QR, Data Matrix, PDF417, Aztec, GS1 DataBar and more) |
| Imager Sensor | Megapixel (MP-DL) — 1280 × 960 pixels |
| Field of View | 42° H × 32° V (DL = standard/narrow angle) |
| Connectivity | USB — 50 cm cable included; plug-and-play |
| Scan Modes | Triggered, Autosense (presentation), Soft Trigger — configurable via Datalogic Aladdin |
| Aimer | 4-dot aimer — highly visible for accurate barcode targeting |
| Good-Read Feedback | Green Spot (visible on barcode), audible beep |
| Sealing | IP54 — dustproof and water-splash resistant |
| Housing | High-impact resin — resistant to cleaning solvents and disinfectant solutions |
| Enclosure Size | 49 cm³ (3 in³) — 60% smaller than GFS44XX; 47 W × 38 H × 27 D mm; 96 g |
| Power | 5V DC input, 214 mA power consumption |

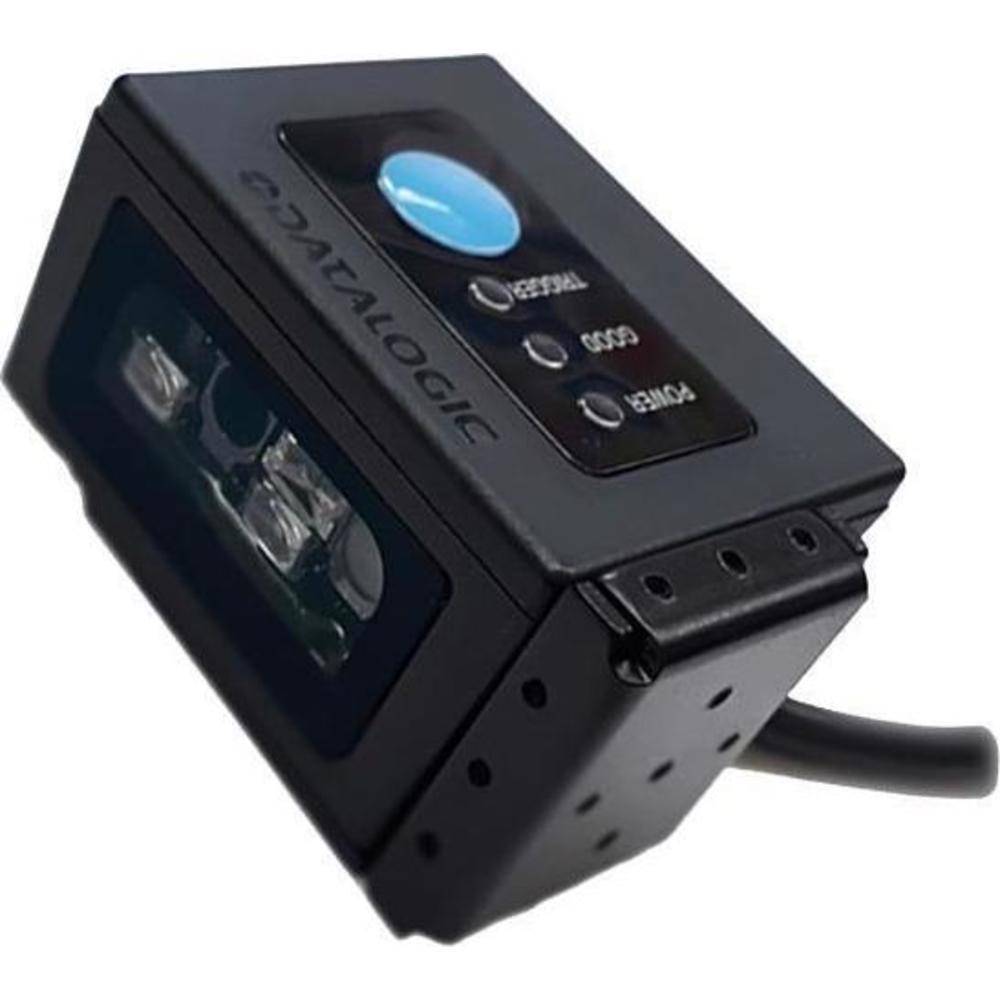

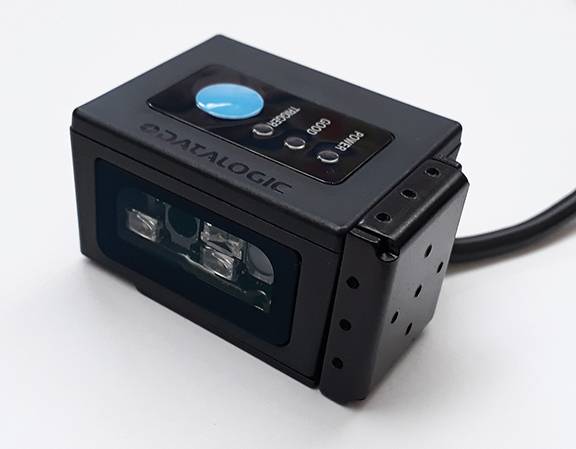

| Mounting | All-sides mounting hardware included — install from any side at any angle |
| Configuration | Datalogic Aladdin™ software (free) |
| Warranty | 3-year factory warranty |
| Part Number | DSM0422-DL |
| EAN | 5704174469780 |
DSM04XX Model Comparison
| Model | Sensor | FOV | Interface |
| DSM0422-DL (this) | MP 1280×960 px | 42°H × 32°V | USB 50 cm |
| DSM0422-WA | MP 1280×960 px | 52°H × 40°V (wider) | USB 50 cm |
| DSM0452-DL | MP 1280×960 px | 42°H × 32°V | RS-232 2 m |
| DSM0421 | WVGA 752×480 px | 40°H × 26°V | USB 50 cm |
Ideal For
The DSM0422-DL is designed for OEM integration into self-checkout kiosks, ticketing machines, access control terminals, price verifiers, autonomous mobile robots, and laboratory/industrial test equipment. Its disinfectant-resistant housing makes it suitable for healthcare scanning applications. The all-angle mounting hardware enables flexible installation regardless of the enclosure design.
Frequently Asked Questions
MP = Megapixel sensor (1280×960 px). DL = standard/narrow field of view (42°H × 32°V). Compare with WA (Wide Angle, 52°H × 40°V) for a broader reading zone.
Yes. All-sides mounting hardware is included — the module can be mounted from any face of its body at any angle, giving system designers full flexibility in their enclosure integration.
Datalogic Green Spot projects a green light directly onto the barcode that was successfully read — providing immediate visual good-read confirmation on the code itself. Ideal for unattended kiosk applications where users need instant feedback without looking at a screen.
Via the free Datalogic Aladdin™ software — scan modes (Triggered, Autosense, Soft Trigger), symbology settings, feedback options and interface parameters are all configurable at no extra cost.
Buyer's Guide
The DSM0422-DL is an OEM component — its value lies in how much scanning performance Datalogic has compressed into 49 cm³. Megapixel sensor, Green Spot, IP54, and all-angle mounting make it robust and flexible for any embedded scanning application.
Choose DSM0422-DL if: you need standard-angle (42°H) megapixel USB scanning. For wider FOV: DSM0422-WA. For RS-232: DSM0452-DL. For lower cost WVGA: DSM0421.
