Datalogic Gryphon I GD4520 Barcode Scanner | 1D/2D HD Imager | USB | Kit | Black

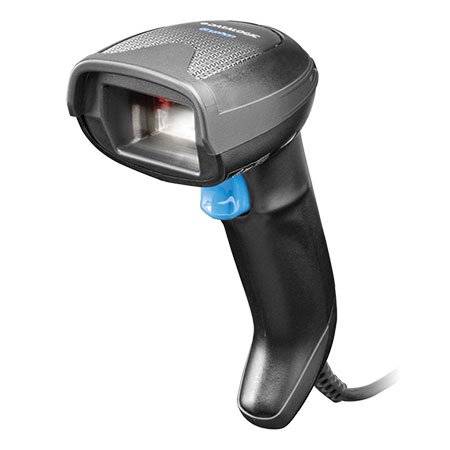

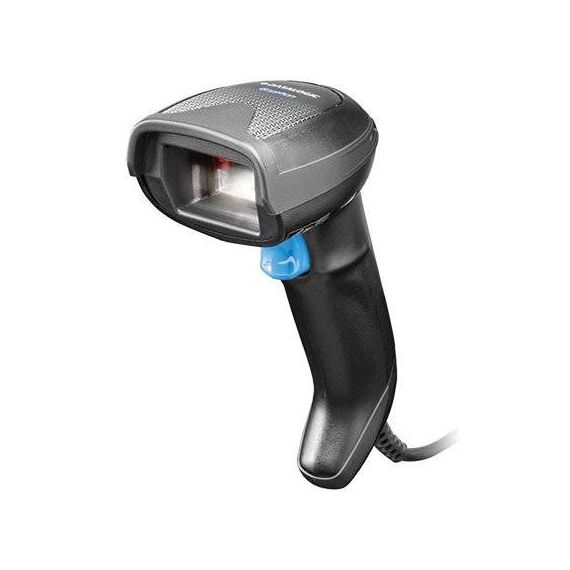

Datalogic Gryphon I GD4520 HD Barcode Scanner
1D/2D High Density Imager · 1 Megapixel · USB-C · IP52 · Motionix · Kit · Black
The Datalogic Gryphon I GD4520 HD is a premium corded 1D/2D barcode scanner built for retail, healthcare, and general-purpose environments that demand superior scanning performance. The High Density (HD) imager resolves tiny barcodes, dense codes, and Direct Part Mark (DPM) symbologies with its 1 Megapixel (1280×800) sensor. Motionix technology automatically switches between handheld and presentation scanning modes based on the operator's natural gestures. This kit includes the scanner, stand, and USB cable — ready to deploy out of the box.
| SKU | GD4520-BKK1-HD |
| EAN | 5706998972347 |
| Scanner Type | 1D/2D High Density (HD) Area Imager · Omnidirectional |
| Imager Sensor | 1 Megapixel CMOS · 1280 × 800 pixels |
| Illumination | Warm White LED (easier on eyes · better on coloured labels) |
| Aiming | 4-Dot + Center Cross · Red Laser 650 nm |
| Motion Tolerance | 35 IPS |
| Reading Angles | Pitch ±65° · Roll 360° · Skew ±65° |
| 1D Barcodes | Code 39, Code 128, UPC/EAN, GS1 DataBar, Codabar, MSI, I 2 of 5, Code 93 and more |
| 2D Barcodes | QR Code, Data Matrix, PDF417, Aztec, MaxiCode, MicroPDF417, Micro QR, Han Xin, Postal codes and more |
| Special Capabilities | Direct Part Mark (DPM) · Digimarc · Image Capture (BMP, JPEG, TIFF) |
| Smart Technology | Motionix™ auto handheld/presentation switching · Green Spot decode feedback · 3GL indicators |
| Interface | USB-C / USB (host powered) |
| IP Rating | IP52 |
| Drop Resistance | 1.8 m (5.9 ft) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 16.6 × 6.8 × 10.9 cm |
| Weight | 161 g |
| Colour | Black |
| Enclosure | Disinfectant-ready |
| Configuration | Datalogic Aladdin software |

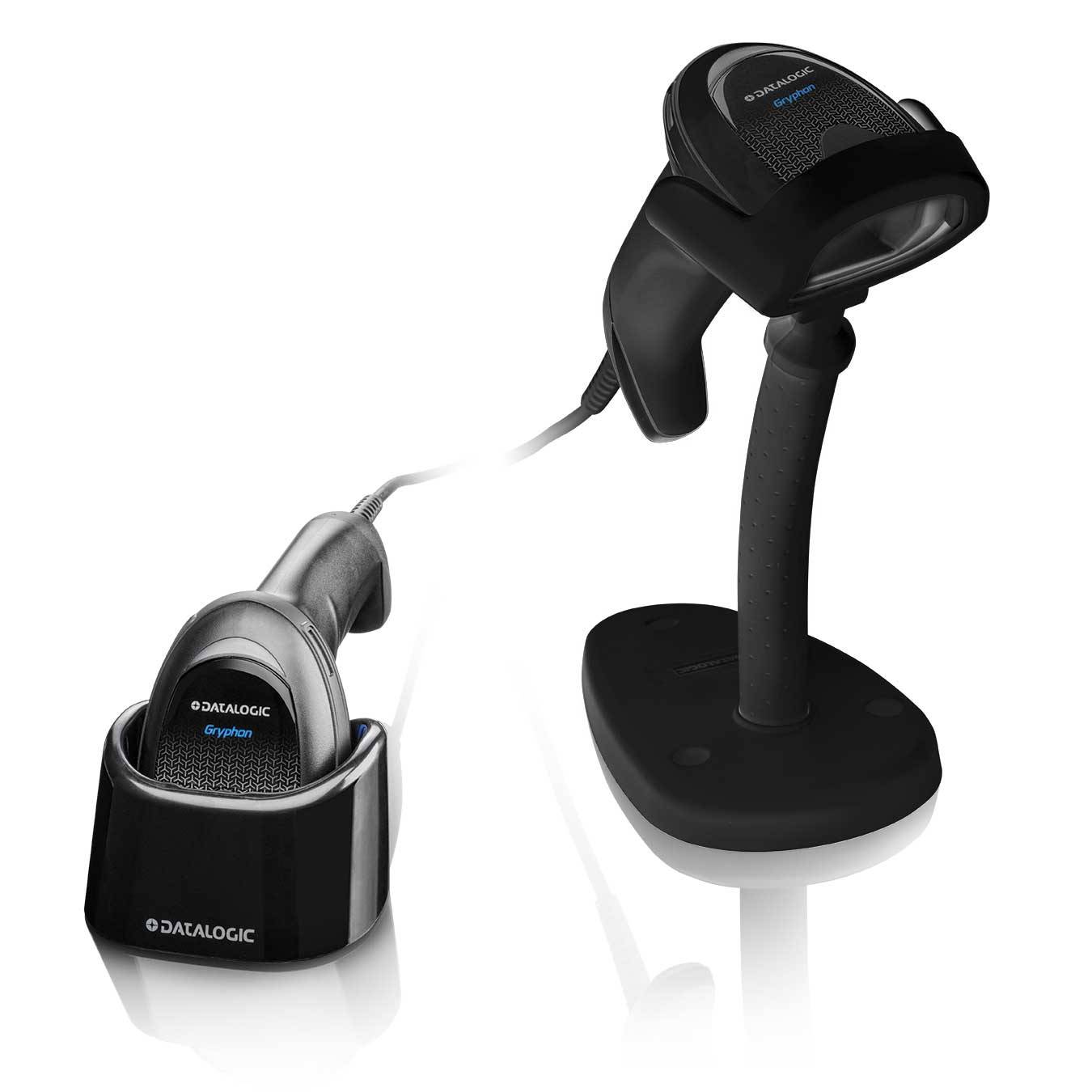

| In the Box | GD4520 Scanner · USB Cable · Stand |
BUYER'S GUIDE
Best For: Retail POS, pharmacy, healthcare, electronics manufacturing, and any environment requiring reliable reading of dense, small, or damaged barcodes. The HD imager is the right choice when a standard scanner misses codes.
GD4520 HD vs. Standard Range: The HD version reads denser barcodes at closer range with higher resolution. If your application involves tiny GS1 DataBar codes, pharmaceutical 2D matrix codes, or DPM engraved marks, HD is essential. For standard retail POS with regular label sizes, the standard range version is sufficient.
Know Before You Buy: This is a corded USB scanner — no Bluetooth. If wireless mobility is required, consider the Datalogic Gryphon GBT4500 cordless variant. IP52 protects against light dust and drips, not immersion.
Premium Build: At 161 g with a disinfectant-ready housing, 1.8 m drop resistance, and Datalogic's Three Green Lights (3GL) decode confirmation, the GD4520 is engineered for full-shift professional use — not a budget scanner.
