Datalogic Gryphon GM4200 Barcode Scanner | 1D Linear Imager | 433 MHz STAR | Wireless Charging | Black

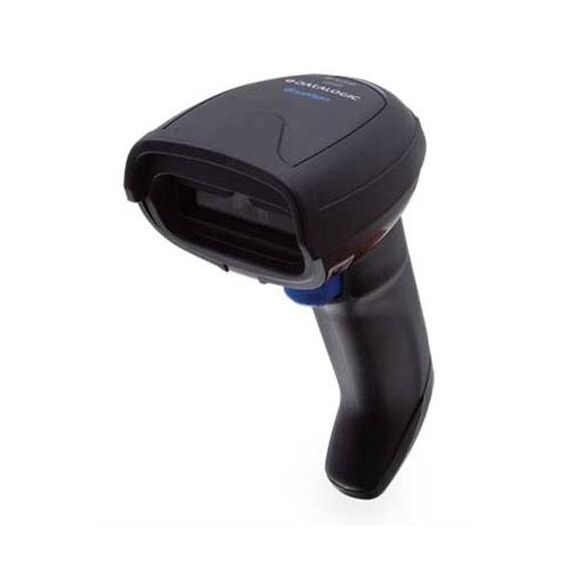

Datalogic Gryphon GM4200 Cordless Scanner
1D Linear Imager · 433 MHz STAR · Wireless Charging · IP52 · Motionix · Black
The Datalogic Gryphon GM4200 is a premium cordless 1D linear barcode scanner powered by Datalogic's STAR Cordless System at 433 MHz — a narrow-band radio technology that operates completely independently from Wi-Fi networks, eliminating interference in busy warehouse and retail environments. With a battery rated for up to 60 hours of continuous operation, wireless inductive charging capability, a 2,300-barcode batch memory for offline scanning, and a disinfectant-ready housing, the GM4200 is designed for full-shift, all-environment deployments from retail and manufacturing to healthcare and pharmacy.
| SKU | GM4200-BK-433-WLC |
| EAN | 5704174533733 |
| Scanner Type | 1D Linear CCD Imager |
| Wireless | Datalogic STAR Cordless System · 433 MHz narrow-band radio · Wi-Fi independent |
| Wireless Range | Up to 30 m (100 ft) |
| Charging | Wireless inductive (WLC) · Compatible cradle: WLC4190-BK-433 |
| Interfaces | USB-C / USB · RS-232 · Keyboard Wedge (KBW) · Multi-interface |
| Barcodes | All standard 1D codes · GS1 DataBar · High-density & damaged codes · Barcodes from screens |
| Smart Technology | Motionix™ auto handheld/presentation · Green Spot · 3GL (3 Green Lights) · Soft-line viewfinder |
| Battery | Li-Ion · Up to 60 hours continuous operation |
| Batch Memory | 2,300 barcodes (offline scanning without base in range) |
| IP Rating | IP52 |
| Drop Resistance | 1.8 m (5.9 ft) |
| Weight | 246 g |
| Enclosure | Disinfectant-ready (DRA housing) |
| Colour | Black |
| Configuration | Datalogic Aladdin software |
| Note | Scanner only with wireless charging capability · WLC4190-BK-433 base and USB cable sold separately |
BUYER'S GUIDE
Best For: Retail stores, pharmacies, light manufacturing, and warehouses where Wi-Fi interference is a concern and all-day cordless scanning is essential. The 433 MHz STAR radio is ideal for environments with dense Wi-Fi networks or where Bluetooth scanner range is insufficient.
STAR 433 MHz vs. Bluetooth: Bluetooth scanners share the 2.4 GHz band with Wi-Fi and can experience interference or range limitations in crowded wireless environments. STAR 433 MHz operates on a dedicated narrow-band frequency with no Wi-Fi overlap, delivering more consistent range and reliability in complex RF environments.
1D Only: The GM4200 scans 1D barcodes only — it cannot read QR codes, Data Matrix, or PDF417. If 2D scanning is required, consider the Datalogic Gryphon GBT4500 (Bluetooth 2D) or the GD4520 corded 2D variant.

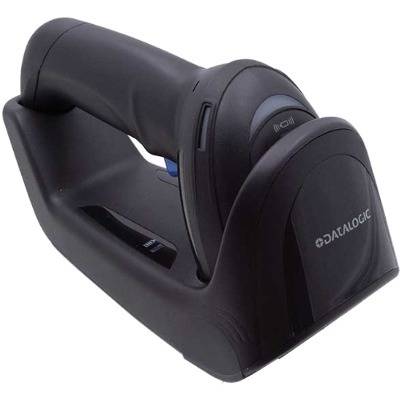

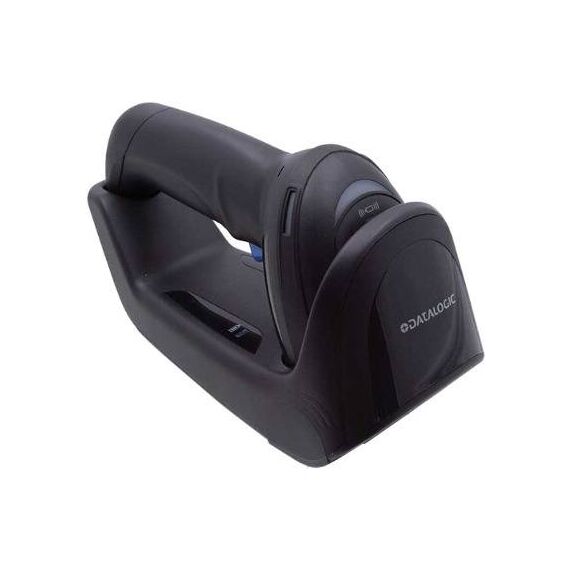

Complete Setup Requires: GM4200-BK-433-WLC scanner + WLC4190-BK-433 wireless charging base + USB-C cable. The base connects to your host via USB-C and handles both communication and wireless charging simultaneously.
